UMPCO MS21919DG34 Military Grade Size SAE 34 2-1/2" Cushioned Wire / Hose Clamp Loop MS21919 DG34 10-Pack
UMPCO MS21919DG34 Military Grade Size SAE 34 2-1/2" Cushioned Wire / Hose Clamp Loop MS21919 DG34 10-Pack
UMPCO MS21919DG34 Military Grade Size SAE 34 2-1/2" Cushioned Wire / Hose Clamp Loop MS21919 DG34 10-Pack
UMPCO MS21919DG34 Military Grade Size SAE 34 2-1/2" Cushioned Wire / Hose Clamp Loop MS21919 DG34 10-Pack

UMPCO MS21919DG34 Military Grade Size SAE 34 2-1/2" Cushioned Wire / Hose Clamp Loop MS21919 DG34 10-Pack

  • Sale
  • $19.95
  • 5 available

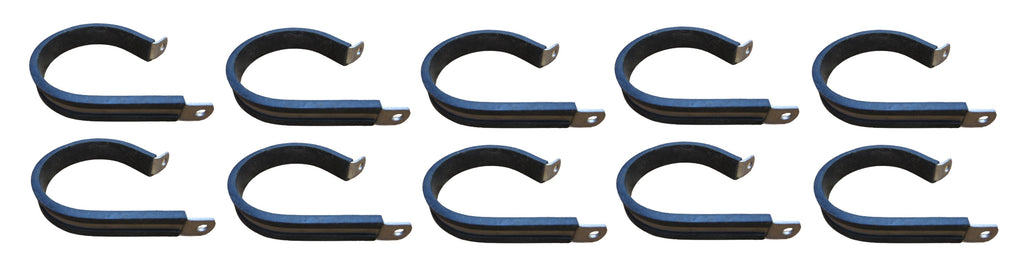

This Listing is for a 10-Pack of Hose Clamp Loops.

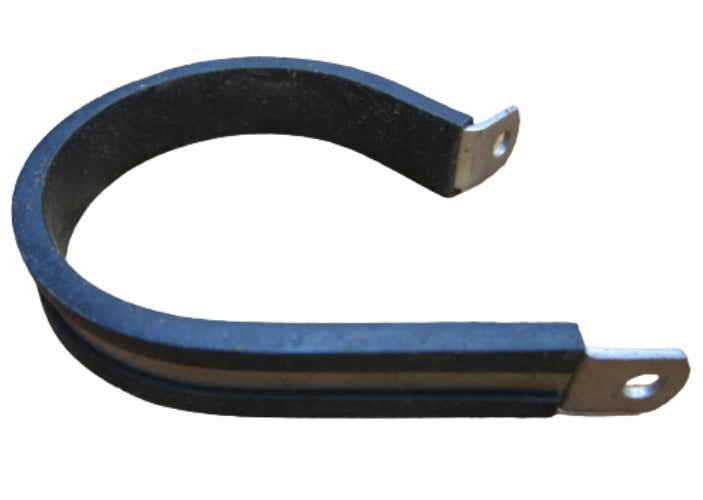

  • UMPCO Military Grade Size SAE 34 2-1/2" Cushioned Wire / Hose Clamp Loop
  • Size: 2-1/2"
  • SAE Size: 34
  • Loop Inside Diameter:
    • 2.110" Minimum
    • 2.140" Maximum
  • Center To Center Distance Between Loop And Mounting Hole:
    • 1.547" Minimum
    • 1.577" Maximum
  • Distance From Loop Center To Tongue End:
    • 1.780" Nominal
  • Loop Inside Diameter:
    • 2.110" Minimum
    • 2.140" Maximum
  • Material:
    • Aluminum Alloy 2024 Band
  • Material:
    • Rubber chloroprene class cr cushion
  • Material Specification:
    • Ams 3209 assn std single material response cushion
  • Material Specification:
    • Qq-a-250/5 t4 fed spec single material response band
  • Surface Treatment:
    • Chromate Band
  • Surface Treatment Specification:
    • Mil-c-5541 cl 1a mil spec single treatment response band
  • Manufacturer: UMPCO
  • Model Number: Hose Clamp Loop
  • Part Number: MS21919DG34
  • Also Known As: MS21919 DG34
