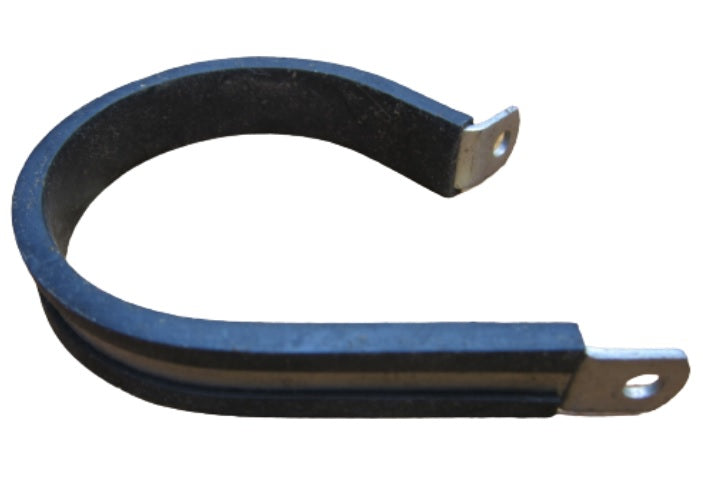

UMPCO MS21919DG34 Military Grade 13/64" Cushioned Wire / Hose Clamp Loop MS21919 DG34

UMPCO MS21919DG34 Military Grade 13/64" Cushioned Wire / Hose Clamp Loop MS21919 DG34

  • Sale
  • $5.95
  • Military Grade 13/64" Cushioned Wire / Hose Clamp Loop
  • Size: 13/64"
  • Loop Inside Diameter:
    • 2.110 inches minimum and 2.140 inches maximum
  • Center To Center Distance Between Loop And Mounting Hole:
    • 1.547 inches minimum and 1.577 inches maximum
  • Distance From Loop Center To Tongue End:
    • 1.780 inches nominal
  • Loop Inside Diameter:
    • 2.110 inches minimum and 2.140 inches maximum
  • Material:
    • Aluminum alloy 2024 band
  • Material:
    • Rubber chloroprene class cr cushion
  • Material Specification:
    • Ams 3209 assn std single material response cushion
  • Material Specification:
    • Qq-a-250/5 t4 fed spec single material response band
  • Surface Treatment:
    • Chromate band
  • Surface Treatment Specification:
    • Mil-c-5541 cl 1a mil spec single treatment response band
  • Manufacturer: UMPCO
  • Part Number: MS21919DG34
  • Also Known As: MS21919 DG34
