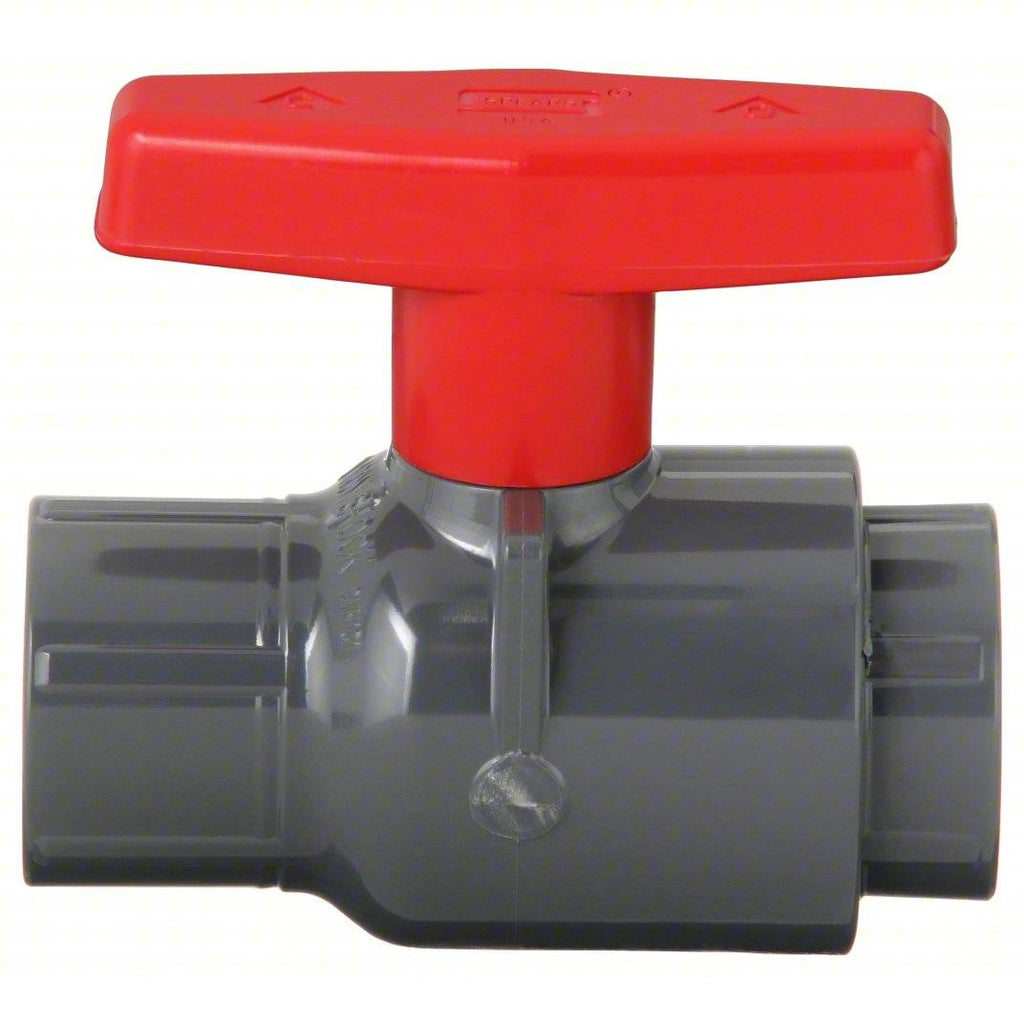

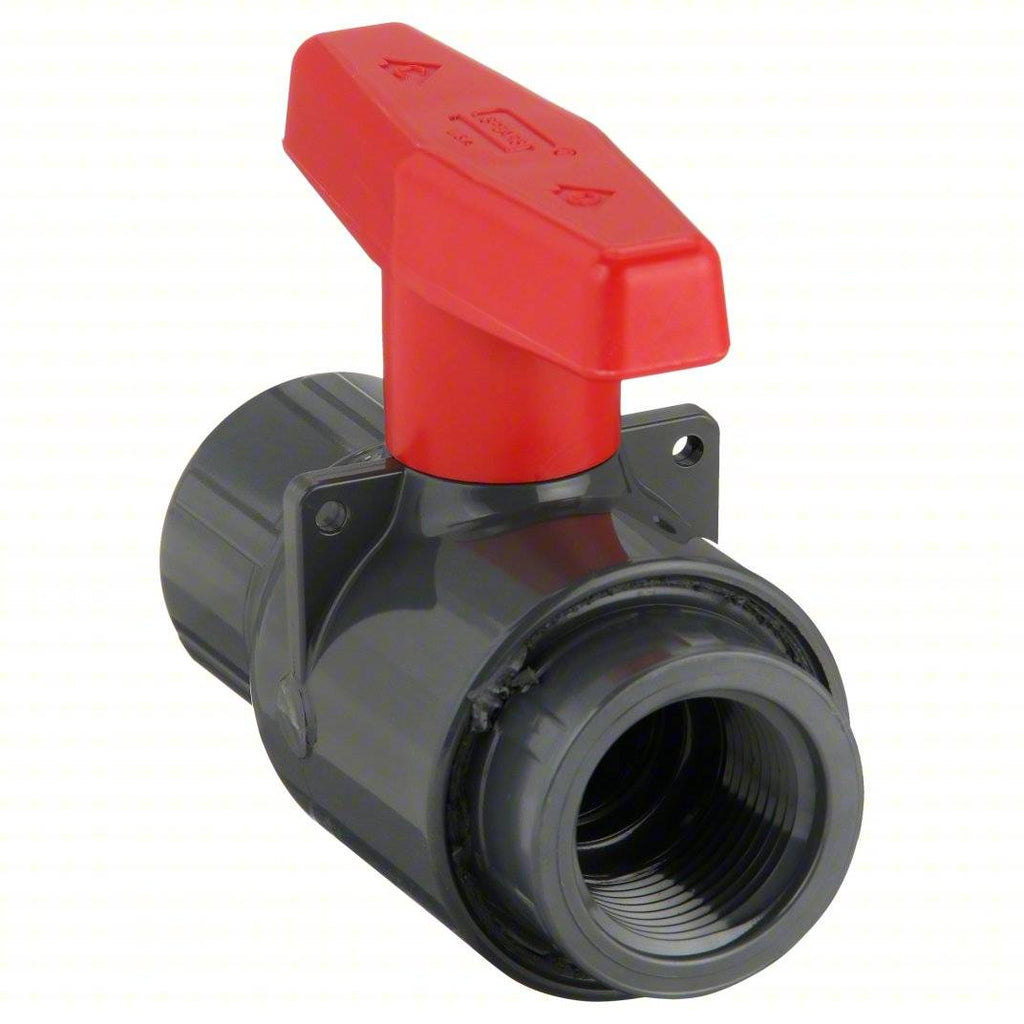

Spears 2121-010 Two-Way 1” FNPT PVC Threaded 235 PSI Compact Tee Ball Valve
Spears 2121-010 Two-Way 1” FNPT PVC Threaded 235 PSI Compact Tee Ball Valve
Spears 2121-010 Two-Way 1” FNPT PVC Threaded 235 PSI Compact Tee Ball Valve
Spears 2121-010 Two-Way 1” FNPT PVC Threaded 235 PSI Compact Tee Ball Valve

Spears 2121-010 Two-Way 1” FNPT PVC Threaded 235 PSI Compact Tee Ball Valve

  • Sale
  • $49.95
  • 2 available
  • Spears 2121-010 Two-Way 1” FNPT PVC Threaded 235 PSI Compact Tee Ball Valve
  • Body Material: PVC
  • Valve Construction: One-Piece
  • Valve Body Style: Straight
  • Ball Port Style: Standard Port
  • Nominal Valve Size: 1” (25.4mm)
  • Connection Type - Side 1: NPT
  • Connection Gender - Side 1: Female
  • Connection Size - Side 1: 1” (25.4mm)
  • Connection Type - Side 2: NPT
  • Connection Gender - Side 2: Female
  • Connection Size - Side 2: 1” (25.4mm)
  • Overall Length: 4.25” (107.95mm)
  • Handle Length: 3.75” (95.25mm)
  • Handle Height: 2.81” (71.37mm)
  • Max. Pressure (CWP): 235 psi
  • Max. Pressure (Steam): Not Rated
  • Max. Pressure (Combustible Gas): Not Rated
  • Coefficient of Volume (Cv): 141
  • Valve Body Color: Gray
  • Handle: Tee
  • Handle Material: Polypropylene
  • Ball Material: PVC
  • Seat Material: EPDM
  • Seal Material: EPDM
  • Stem Material: PVC
  • Media Temp. Range: 40 °F to 140 °F
  • 3-A Compliance: Not Rated
  • Standards: ASTM F1970
  • Manufacturer: Spears
  • Model Number: Ball Valve
  • Part Number: 2121-010
