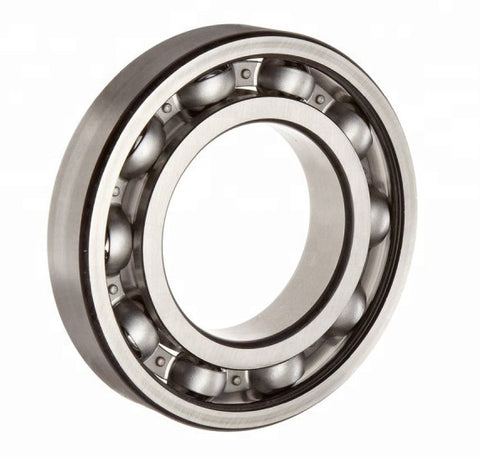

GM 3209 Delco 903209 Genuine OEM NDH 45 X 85 X 19 Metric Clutch Gear Bearing

GM 3209 Delco 903209 Genuine OEM NDH 45 X 85 X 19 Metric Clutch Gear Bearing

  • Sale
  • $18.95
  • GM Delco 903209 Genuine OEM 45mm X 85mm X 19mm Metric Radial Deep Groove Transmission Clutch Gear Bearing
  • Size: 45mm ID X 85mm OD X 19mm Width
  • Bore Diameter: 45 mm (1.772")
  • Outside Diameter: 85 mm (3.347")
  • Overall Width: 19 mm (0.748")
  • Bore Type: Round
  • Closure Type: Open
  • Row Type & Fill Slot: Single Row Non-Fill Slot
  • Snap Ring Included: Without Snap Ring
  • Internal Clearance: C3
  • Dynamic Load Capacity: 35.1 kN
  • Static Load Capacity: 21.6 kN
  • Precision Rating: ABEC 3 (ISO Class 6)
  • Finish/Coating: Uncoated
  • Cage Material: Steel
  • Outer Ring Width: 19 mm
  • Maximum RPM: 11000 RPM
  • Fillet Radius: 1 mm
  • Series: 62
  • Manufacturer: GM Delco by NDH New Departure Hyatt
  • Model Number: 3209
  • Part Number: 903209
  • Also Known As:
    • NDH New Departure Hyatt 3209
    • Delco, ACDelco 6209
    • Federal Mogal National BCA Bearings 209
    • SKF 6209 J/EM, 6209 C3, 6209J
