  • Sale
  • $19.95
  • 1 available
  • Power Pax SW4527 24VDC 3.5A Switch Mode Desktop Power Supply
  • This 24VDC 3.5A Desktop power supply has a 90-264 VAC input and comes supplied with international safety approvals. The unit meets the latest ErP stage 2 (CEC V) requirements and has high reliability with M.T.B.F of 50K hours at 25 °C. The unit provides a single voltage regulated output and is fitted with a 2.1 X 5.5 X 12 mm connector.
  • Specifications:
    • Output: 24VDC 3.5A
    • Current Min.: 0.01A
    • Power (was): 84W
    • Line Reg: +/-5% at rated load
    • Total Output Regulation: +/-5 % at 10—100% load
    • Ripple & Noise (mV p-p)L 500mV P-P
    • Protections: Over Current / Voltage, Short Circuit
    • Case Size: 6” X 2.64” X 0.73” (153 X 67 X 18.5 mm)
    • Weight (approx.): 300g
    • DC Cord: 1.8 Metres
    • DC Plug: 2.1 X 5.5 X 12 mm +ve centre
    • Rated Input Voltage: 100-240 VAC
    • Full Input Voltage Range: 90-264 VAC
    • Rated Frequency: 50-60Hz
    • Full Frequency Range: 47-63Hz
    • Efficiency: Meets ErP stage 2
    • Leakage Current: shall not exceed 0.25mA
    • Input Current (RMS Max.): 1.3A max
    • Hi-Pot Spec: 3000VAC 10mA 1 min. (I.P. to O.P.)
    • No load power consumption: 0.3W max
    • Operating Temperature: 0 to 40 °C
    • Storage Temperature: -20 to 80 °C
    • Operating Humidity: 10% to 90%
    • Safety Approvals: CE, TUV, C-Tick, cUL
    • EMC Standards: EN55022:2006+A1:2007 / EN6100-3-2 / EN6100-3-3
    • Pb-free: Yes, RoHS Compliant
    • MTBF: 50K Hours at 25 °C
  • Manufacturer: Power Pax
  • Model Number: Power Supply
  • Part Number: SW4527

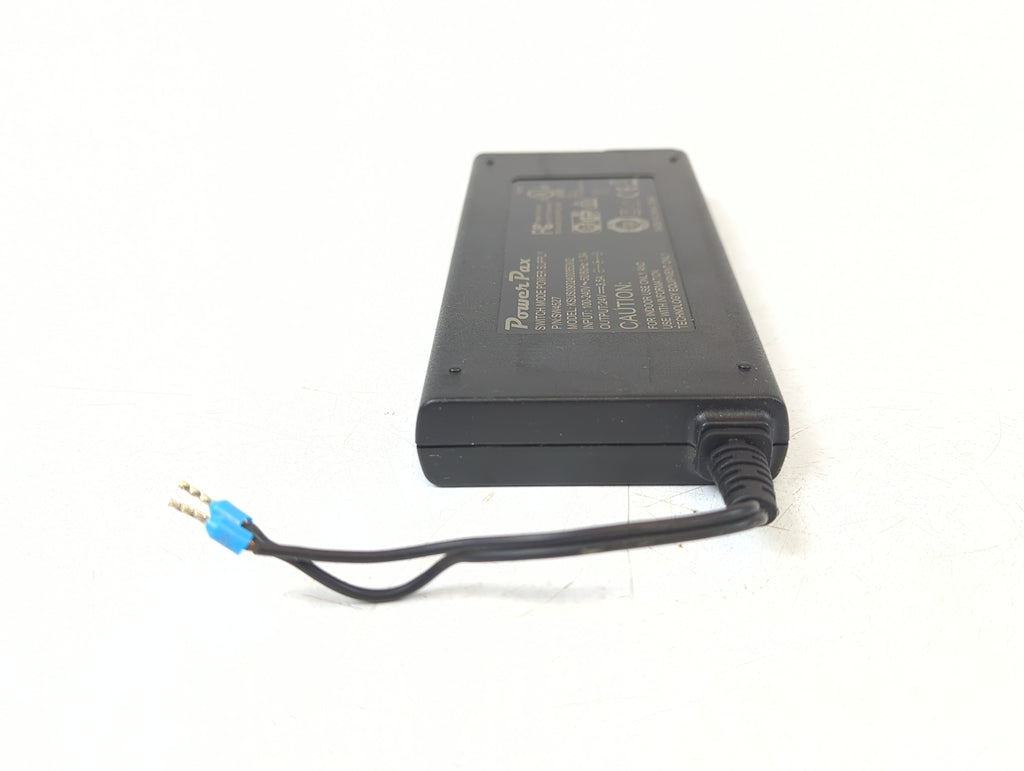

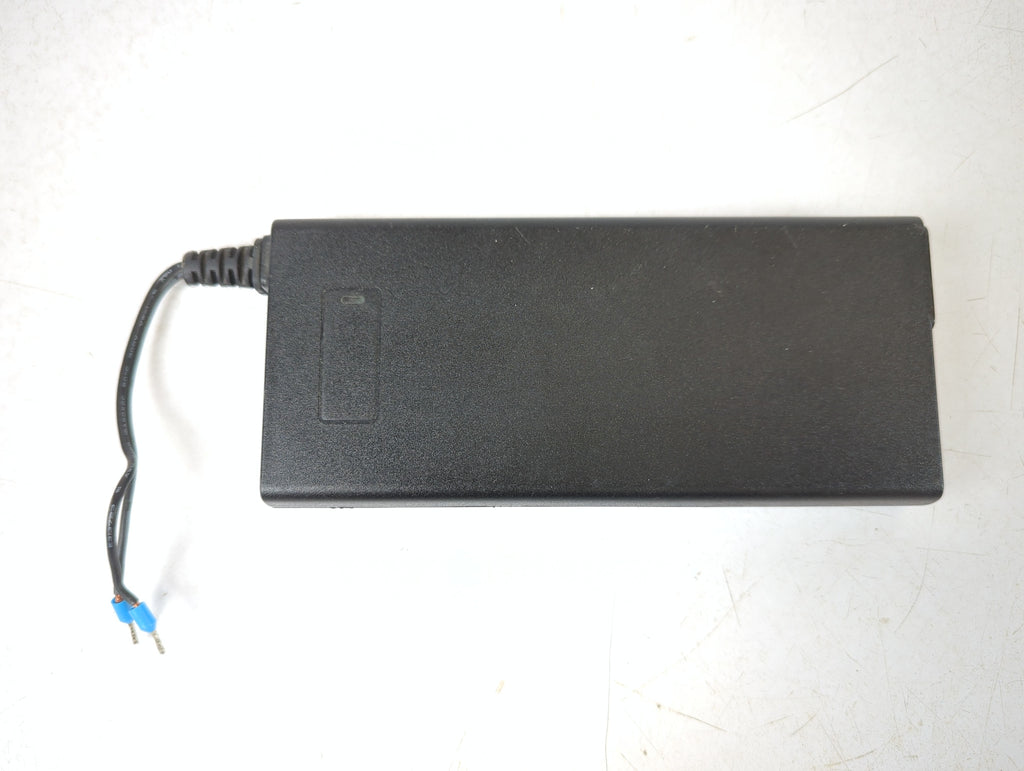

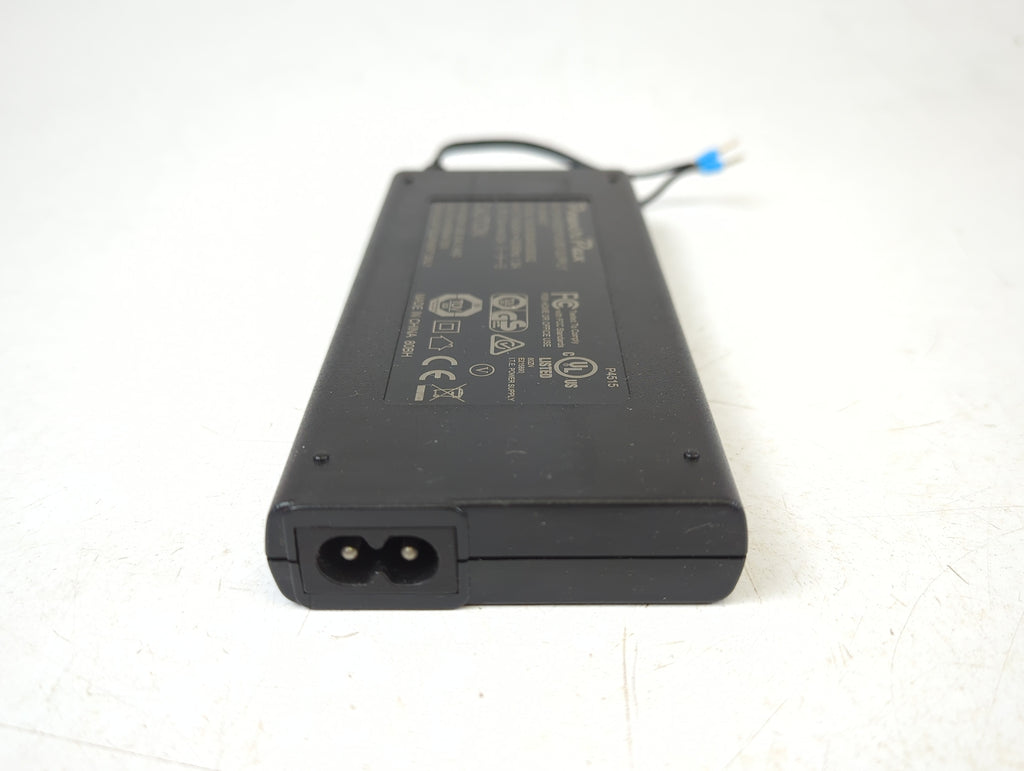

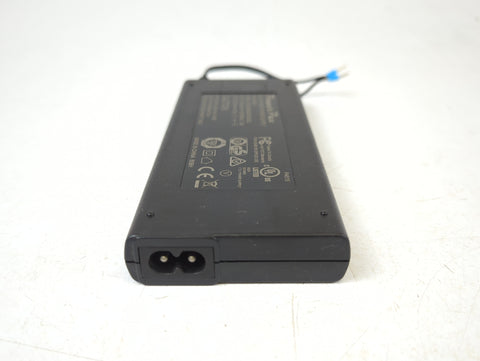

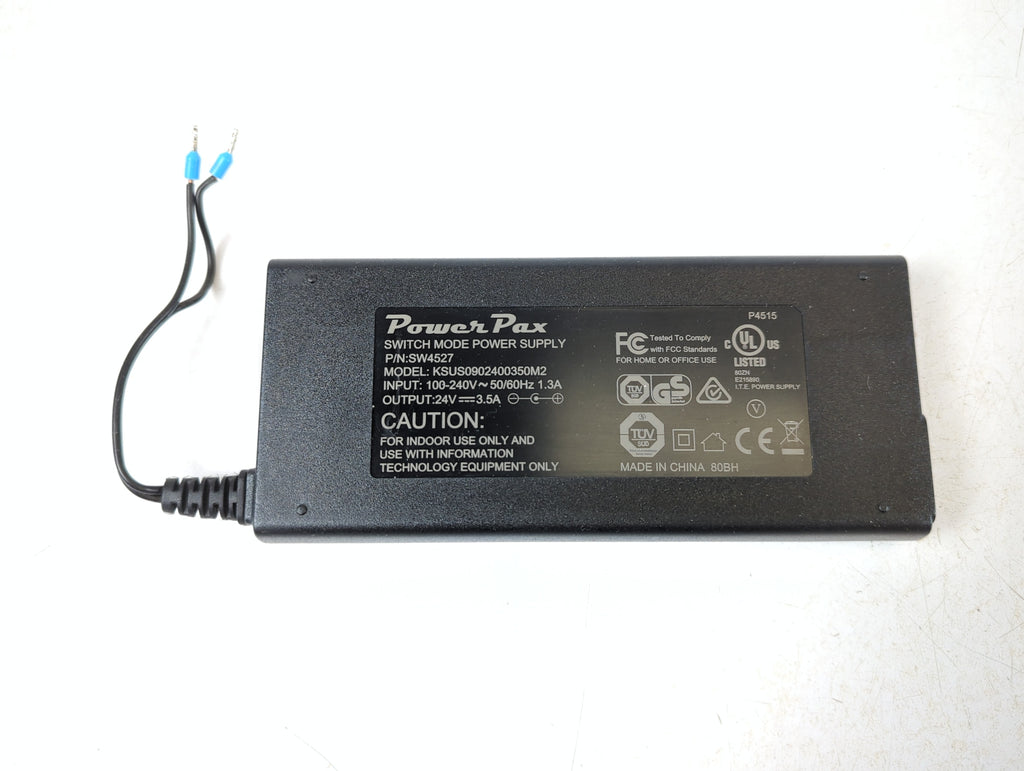

  • Condition: In Stock, Ready to Ship! This unit is in very good physical condition. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
