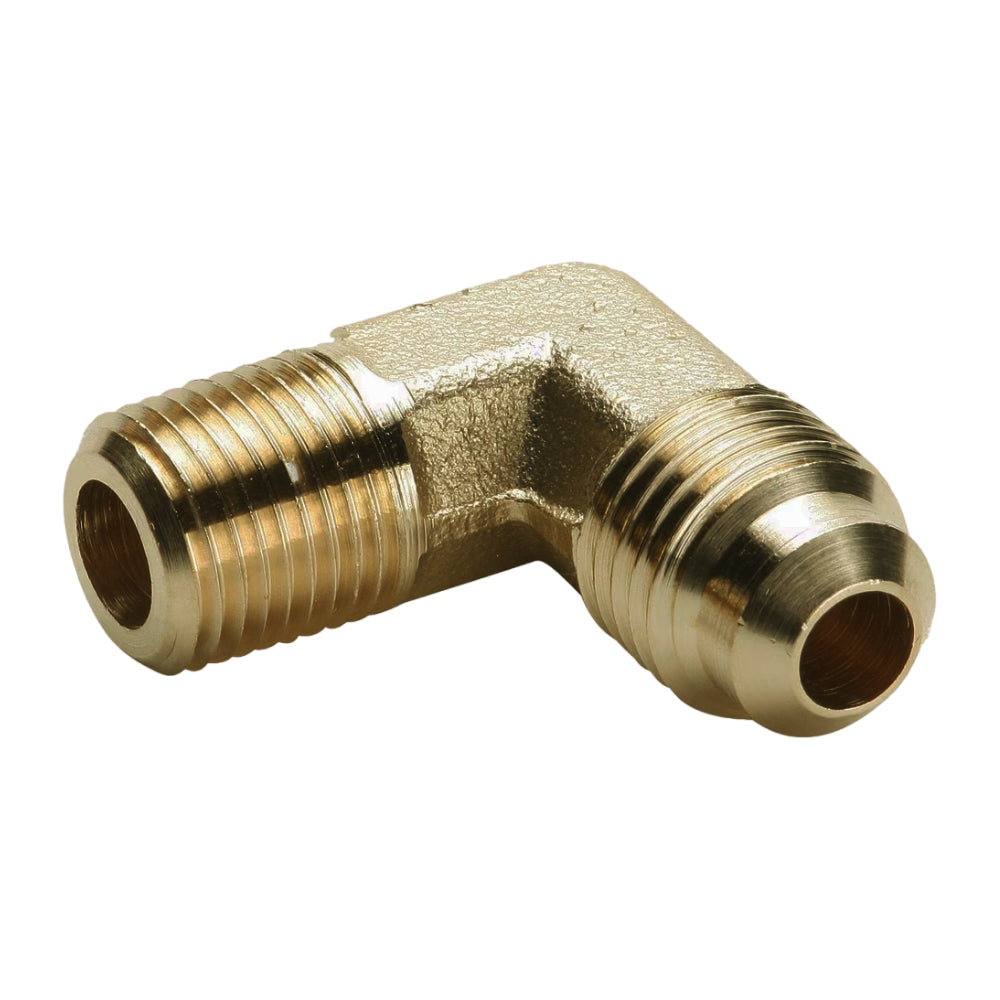

Parker 149F-12-12 X149F-12-12 Brass 3/4” Tube X NPTF 45° Flare 90° Forged Elbow Fitting

  • Sale
  • Regular price $29.95
  • 6 available


  • Brass 3/4” Tube X NPTF 45° Flare 90° Forged Elbow Fitting
  • Connection 1 Tube Outside Diameter: 3/4”
  • Connection 2 Thread Size: 3/4”
  • Connection 1 Style: Flare
  • Connection 2 Style: Male Pipe
  • Maximum Operating Pressure: 2800 psi, 193 bar
  • Maximum Operating Temperature: 250 °F, 121 °C
  • Minimum Operating Temperature: -65 °F, -53 °C
  • Body Material: Brass
  • Nut Material: Brass
  • Tube Material: Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
  • Style: Flare to Pipe
  • Configuration Type: 90° Forged Elbow
  • O-Ring Material: Fluorocarbon
  • Specifications Met: SAE J512, SAE J513
  • Media: Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
  • For use with:
    • Pumps
    • Gas Grills
    • Coffee Makers
    • Adapters
  • Manufacturer: Parker
  • Model Number: 90° Elbow Fitting
  • Part Number: 149F-12-12, X149F-12-12
  • Also Known As: 149F-1212, X149F1212
