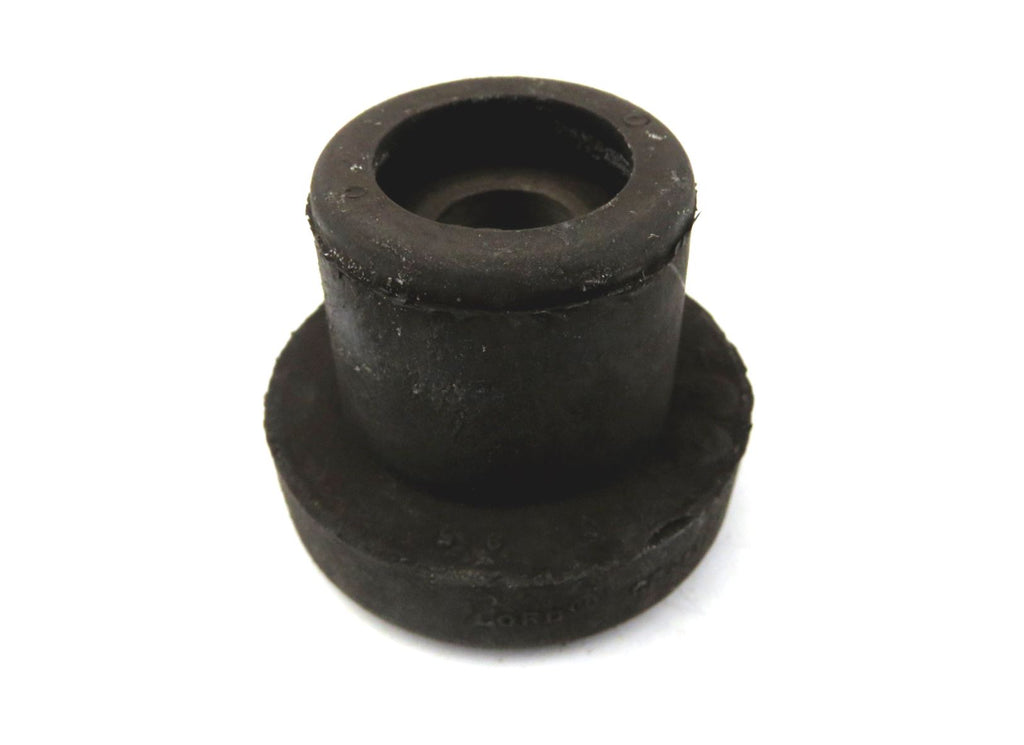

LORD CB-1122-4 CB-1100 Series Vibration Isolation Center Bonded Mount Foot
LORD CB-1122-4 CB-1100 Series Vibration Isolation Center Bonded Mount Foot
LORD CB-1122-4 CB-1100 Series Vibration Isolation Center Bonded Mount Foot
LORD CB-1122-4 CB-1100 Series Vibration Isolation Center Bonded Mount Foot

LORD CB-1122-4 CB-1100 Series Vibration Isolation Center Bonded Mount Foot

  • Sale
  • $19.95
  • 2 available
  • LORD CB-1122-4 CB-1100 Series Vibration Isolation Center Bonded Mount Foot
  • Center Bonded Mounts isolate vibration, control shock and reduce noise due to structure borne vibrations. Available in a full range of rated load capacities and able to withstand shock loads of 10 g's, these mounts effectively protect equipment and improve operator comfort. They are ideal for automotive, marine, railroad and industrial markets.
  • Center Bonded Mounts provide flexible suspension systems for mobile, transport-mounted or portable equipment. Typical applications include engines, cabs, fuel tanks, pumps, air conditioning units, compressors and industrial machinery.
  • Features:
    • Vibration isolation in all directions.
    • Noise attenuation.
    • Easy installation because of one-piece design.
    • Low-cost installation.
    • Long service life.
    • Consistent performance because of permanently bonded design.
    • Shock protection in all directions provided by cushioned snubbing, no metal-to-metal bottoming.
    • Standard sizes available from stock.
    • Space-saving size.
    • Captive installation after overload failure when recommended bolt, washer and nut are used.
    • Accommodate English and Metric bolts.
  • Specifications:
    • Max Axial Static Load Rating (Load): 600 lbs (2670 N)
    • Max Axial Static Load Rating (Deflection): 0.06” (1.52mm)
    • Bolt Size: 1/2" / M12
    • Nominal Dynamic Static Spring Rate Ratio: 1.22

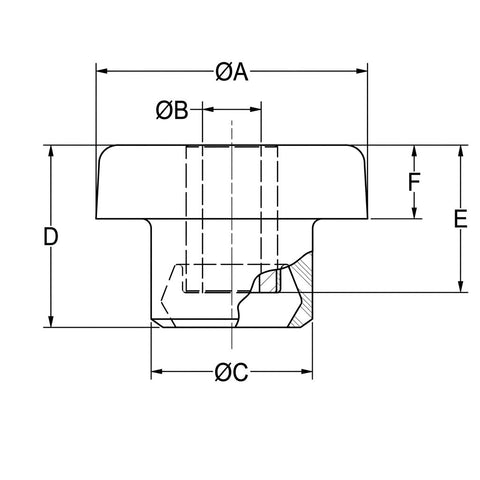

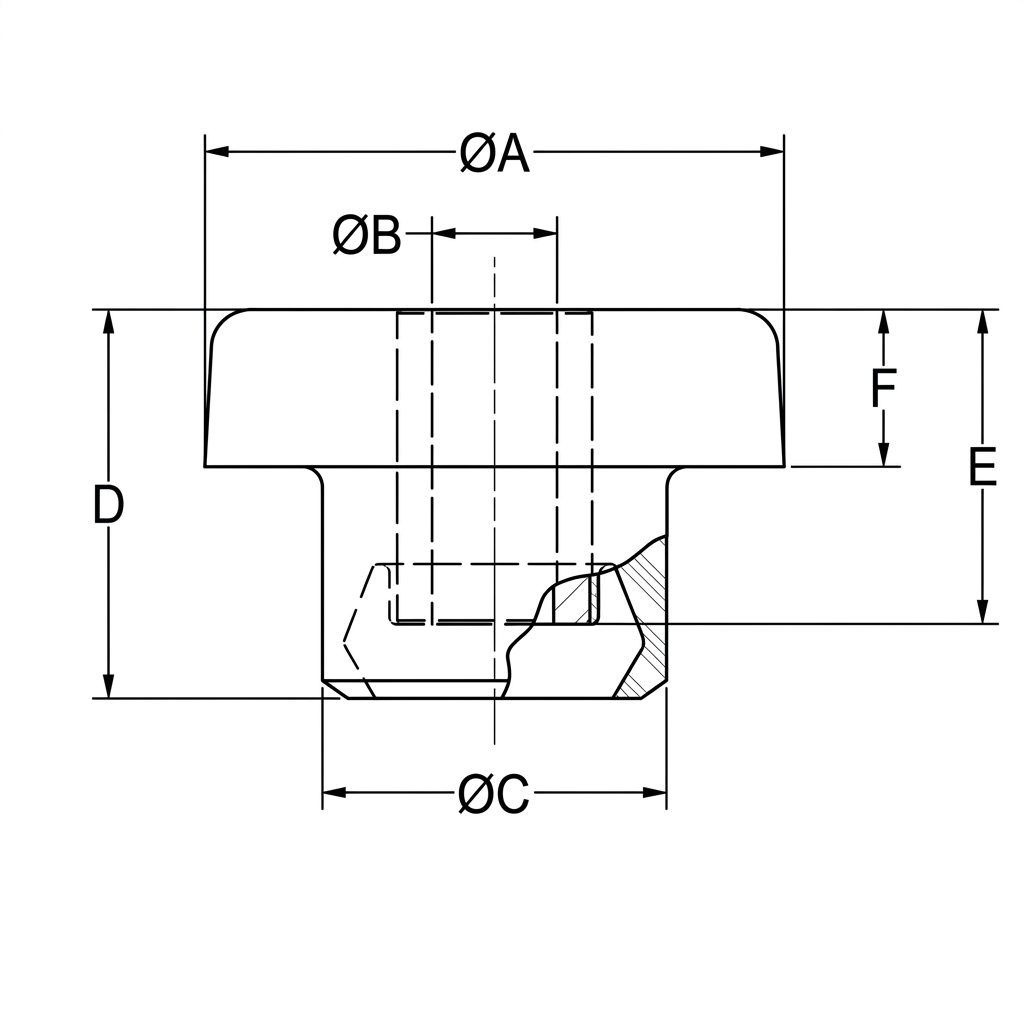

    • Dimensions:
      • A: 2” (50.8mm)
      • B: 0.532” (13.5mm)
      • C: 1.35” (34.3mm)
      • D: 1.62” (41.1mm)
      • E: 1.31” (33.3mm)
      • F: 0.53” (13.5mm)
  • For use with: Streetcar AH-28 Trolley and many more.
  • Manufacturer: LORD
  • Model Series: CB-1100 Series
  • Model Number: Center Bonded Mount
  • Part Number: CB-1122-4
  • Also Known As: Optima Bus Corp 23635800 Streetcar AH-28 Trolley Shuttle Motor Mount Bushing
