  • Sale
  • $79.95
  • 1 available

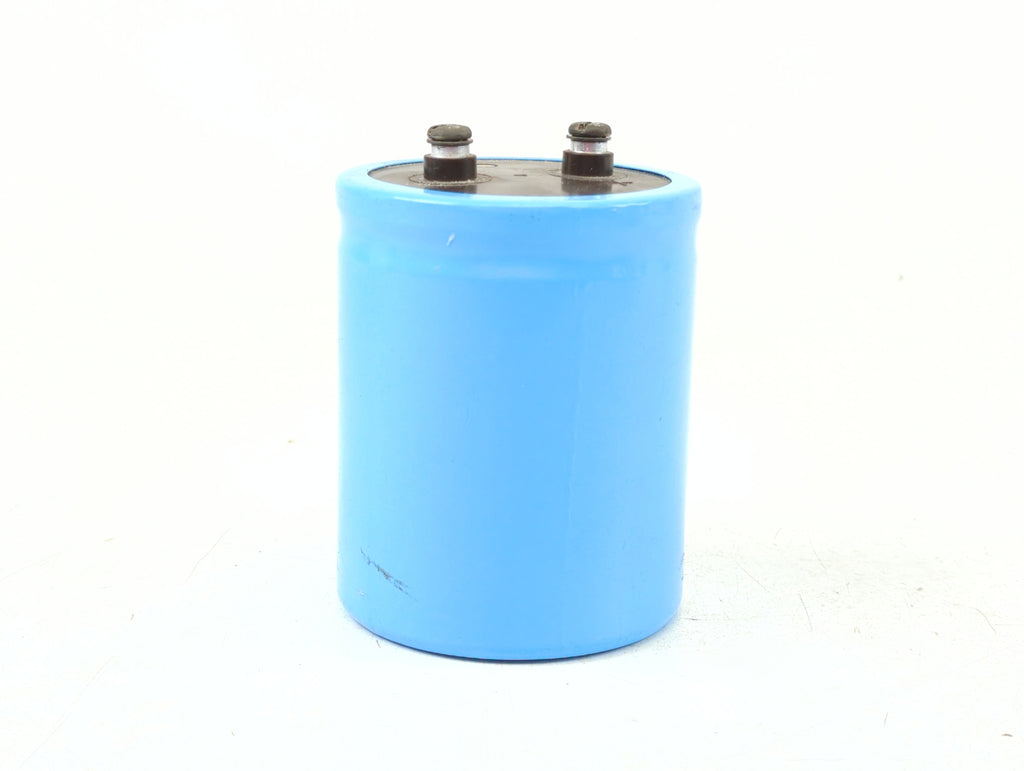

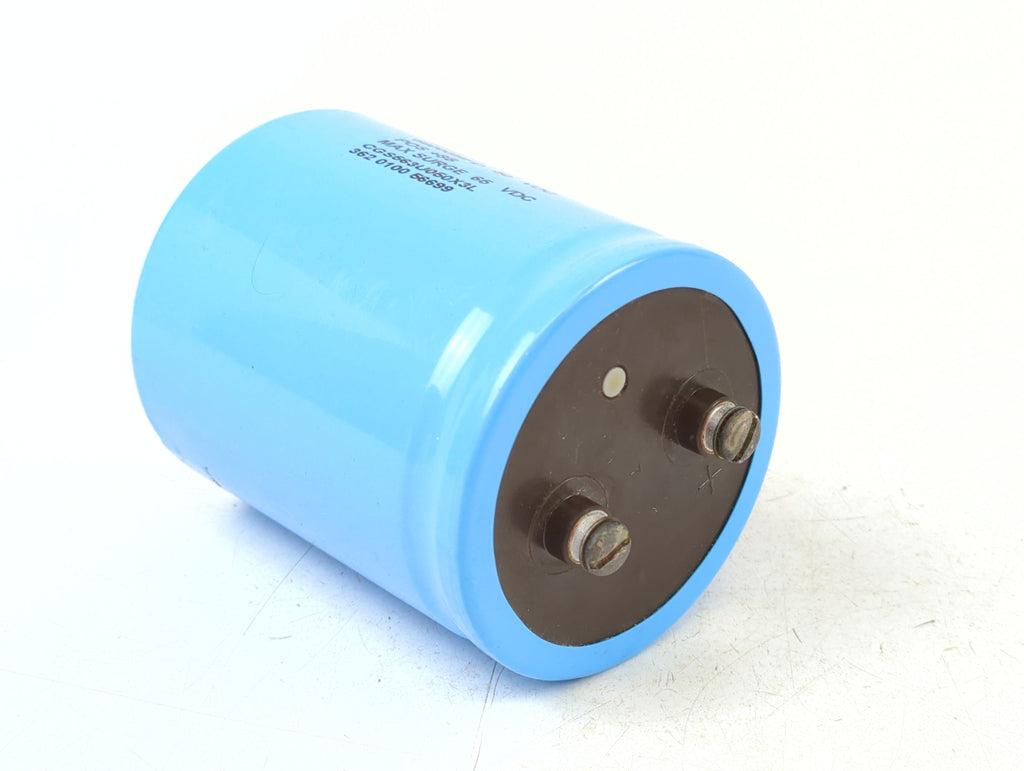

  • Mallory CGS563U050X3L 56,000 µF 50VDC Screw Term Aluminum Electrolytic Capacitor
  • POS +85°C
  • Max Surge: 65VDC
  • Capacitance: 0.056 F
  • Voltage Rating DC: 50 VDC
  • Tolerance: - 10 %, + 75 %
  • ESR: 5 mOhms @ 120Hz
  • Ripple Current: 23.1 A
  • Minimum Operating Temperature: - 40 C
  • Maximum Operating Temperature: + 85 C
  • Termination Style: Screw
  • Type CGS screw terminal, aluminum electrolytic capacitors have a high CV rating and are suitable for use in the most demanding applications requiring high current filtering or energy storage.
  • Manufacturer: Mallory
  • Model Number: CGS
  • Part Number: CGS563U050X3L
  • Condition: New! In Stock, Ready to Ship! NOS New Old Stock.
