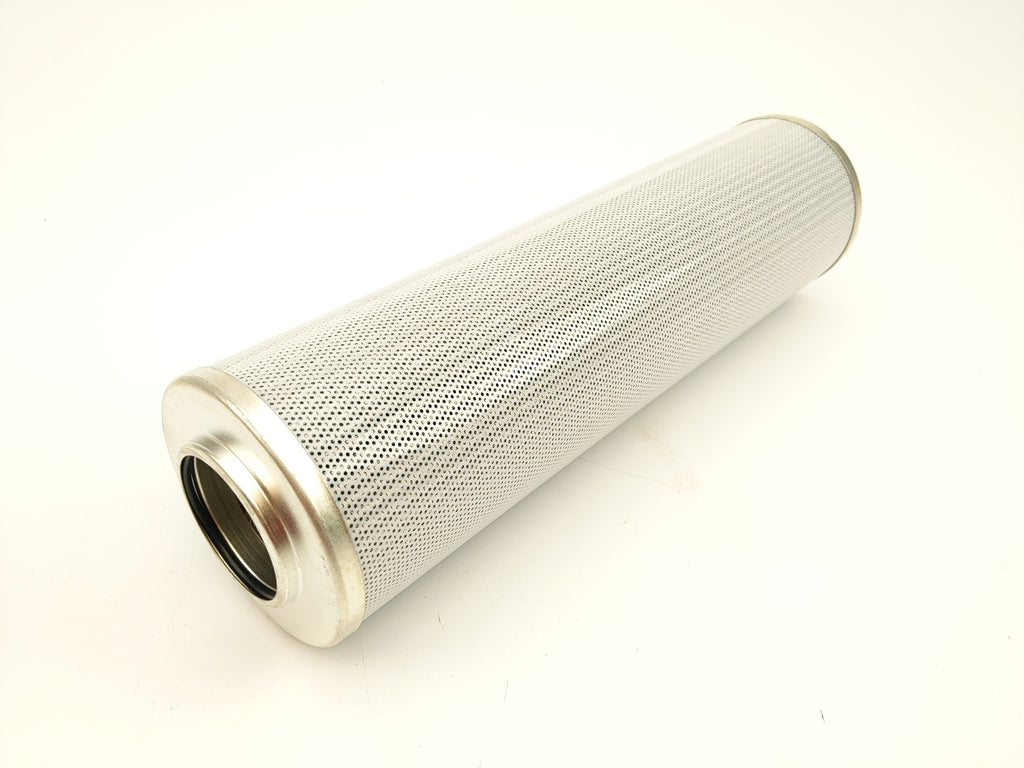

HYDAC 0660 D 010 MM (2088507) Type D Hydraulic Filter Element for Pressure Filters

HYDAC 0660 D 010 MM (2088507) Type D Hydraulic Filter Element for Pressure Filters

  • Sale
  • $299.95
  • 1 available
  • Type D Hydraulic Filter Element for Pressure Filters
  • Size: 0660
  • Division: 11
  • Stat-Free: No
  • Style: Cartridge
  • Efficiency: 99.5%
  • Outer Sleeve: Yes
  • Cap Material: Steel
  • Beta Rating: β10 > 200
  • Filter Material: Microglass
  • Cap 1 Type: O-Ring Cap
  • Cap 2 Type: Closed End Cap
  • Seal: Nitrile Rubber (NBR)
  • Flow Direction: Outside - In
  • Collapse Rating: 10.000 bar
  • Absolute Filter Rating: 20µm
  • Media Type: MM=Mobilemicron
  • Type: Type D Hydraulic Filter Element
  • Configuration: One Open Cap, One Closed Cap
  • Temperature Range: -30 ºC (-22 ºF) to 100 ºC (212 ºF)
  • Dimensions:
    • Length: 13” (330mm)
    • Inside Diameter: 1.89” (48mm)
    • Outside Diameter: 3.6” (91mm)
  • Manufacturer: HYDAC
  • Model Number: 0660 D 010 MM
  • Part Number: 2088507
  • Also Known As: 0660D010MM, 0660-D-010-MM
