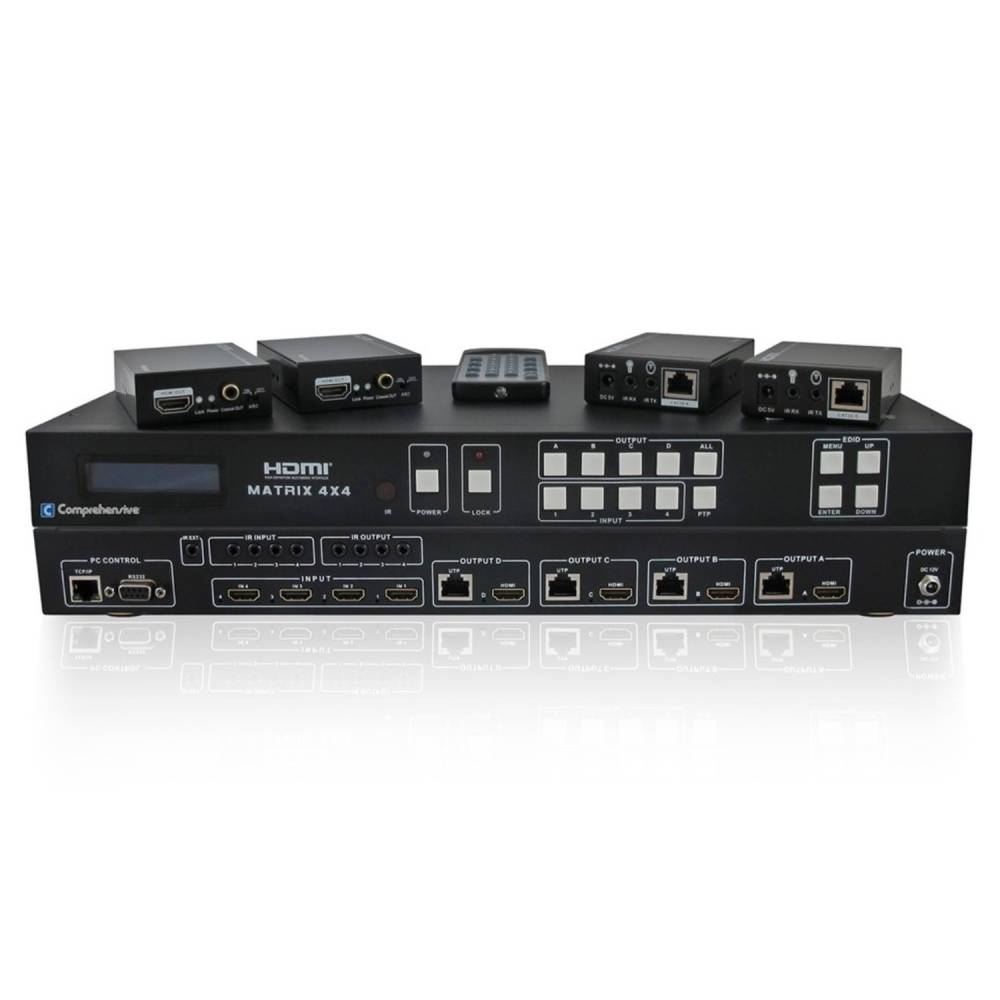

Comprehensive CSW-HD440NEXT 4x4 HDMI True Matrix Switcher with 4 Receivers

  • Sale
  • Regular price $499.95
  • 1 available


  • Comprehensive CSW-HD440NEXT 4x4 HDMI True Matrix Switcher with 4 Receivers
  • Introducing the Comprehensive CSW-HD440NEXT 4x4 HDMI 1080p Matrix Switcher with smart EDID management, as well as 4 Receivers over Cat5e/6. This device features four HDMI outputs and each of the outputs are mirrored to provide a simultaneously run Cat-cable output. To control the different devices and sources, the user can utilize the RS-232 control, the IR remote, front-panel buttons, or TCP/IP control.
  • By connecting an included receiver to each of the Cat-cable outputs, the user can extend the HDMI signal up to 164' for multi-room connectivity. These units are compatible with DVD and Blu-ray Players, game consoles, set-top boxes, and home theater PCs that are capable of connecting to an HDMI display. At all times, any of the sources are accessible by any of the displays and by using the above mentioned controls, the user can control and select inputs and outputs.
  • Specifications:
    • Power Supply: 12 V/2.5 A DC
    • ESD Protection: 8kV (air-gap discharge) 4kV (contact discharge)
    • Chassis Material: Metal
    • Rackmountable: Yes
    • Silkscreen Color: Black
    • Power Consumption: 23 W(max)/0.5W(Standby)
    • Weight: 4 lbs.
    • Dimensions (WxDxH): 17.4” X 7.8” X 1.8"
    • Included Items: 4x4 HDMI Matrix, 4x HDMI Receiver, 2x Power Adapter, Operation Manual, 4x IR Tx Cable, 5x IR Rx Cable, Matrix IR Remote, 2x Mounting Ears, RS-232 Cable
  • Manufacturer: Comprehensive
  • Model Number: True Matrix Switcher
  • Part Number: CSW-HD440NEXT
