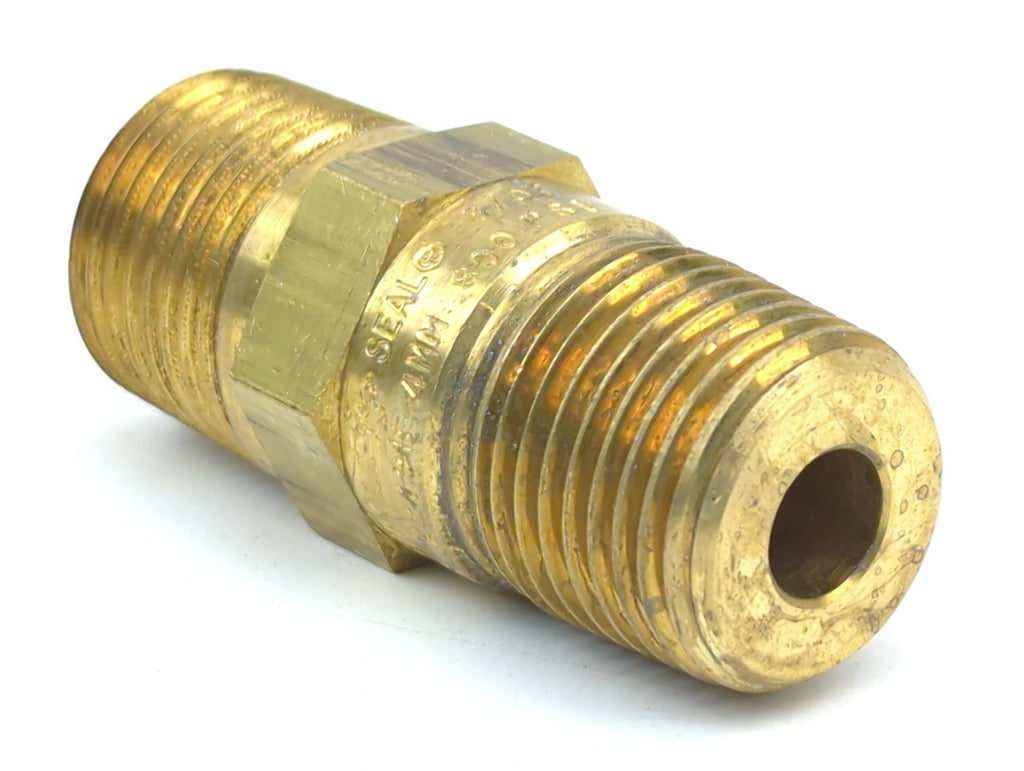

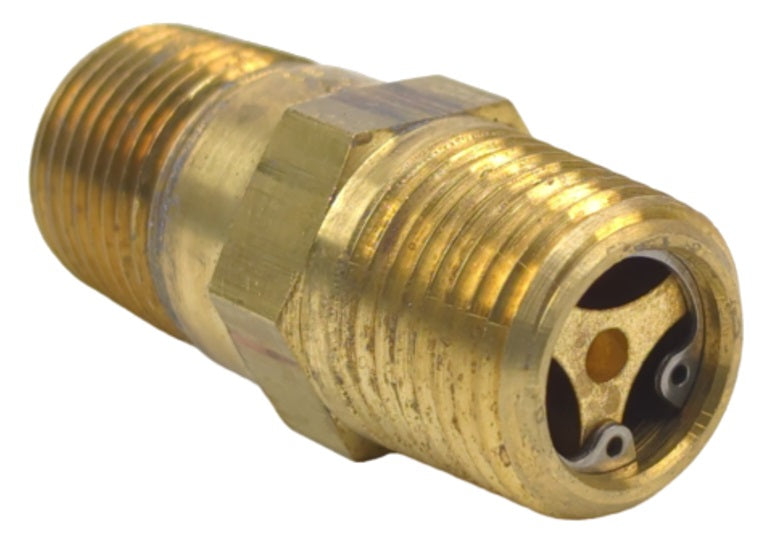

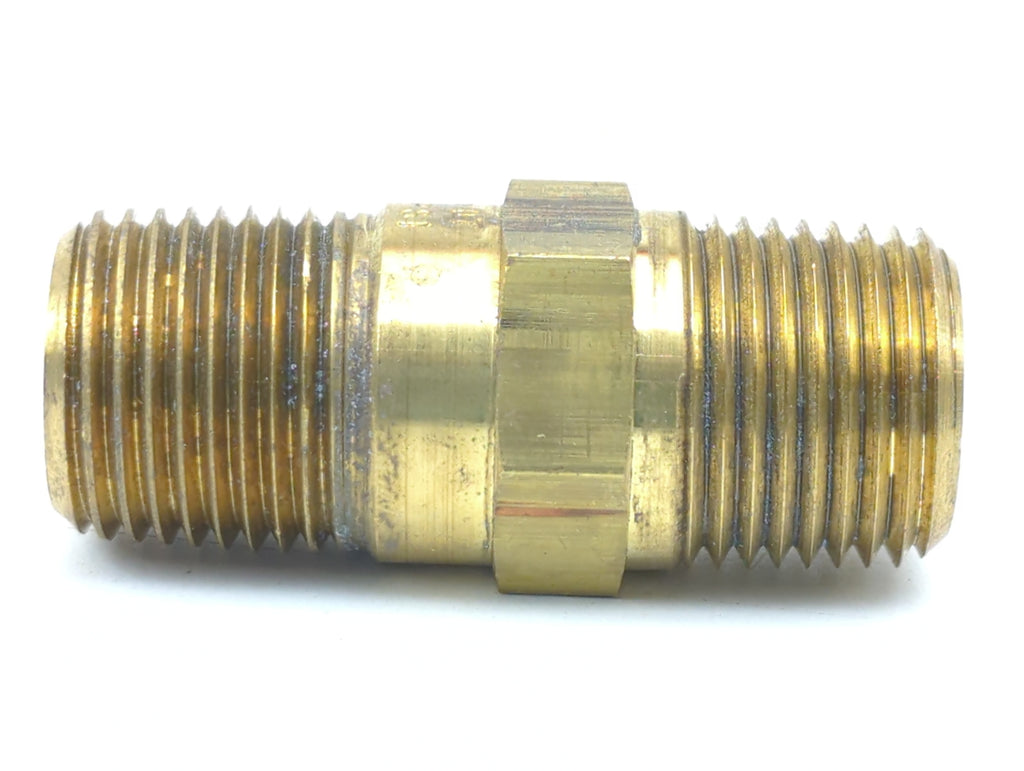

Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve
Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve
Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve
Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve
Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve
Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve

Circle Seal 2249B-4MM 2200 Series Brass 1/2" NPT 800 PSI Check Valve

  • Sale
  • $79.95
  • 1 available
  • 2200 Series Brass 1/2" NPT 800 PSI Check Valve
  • Series: 2200 Series
  • Material: Brass
  • Inlet / Outlet Connection: Male
  • Seals: Buna-N
  • Valve size: 1/2"
  • Temperature Range: -65 to 250 F
  • Operating Pressure: 0 to 800 PSIG
  • Proof Pressure: 1200 PSIG
  • Cracking Pressure: 2-4 PSIG
  • Max. Allowable Pressure Drop (Air): 10 psid
  • Max. Allowable Pressure Drop (Oil): 15 psid
  • Spring Material: 302 Stainless Steel
  • Manufacturer: Circle Seal
  • Model Number: Check Valve
  • Part Number: 2249B-4MM
  • Also Known As: 25007436
