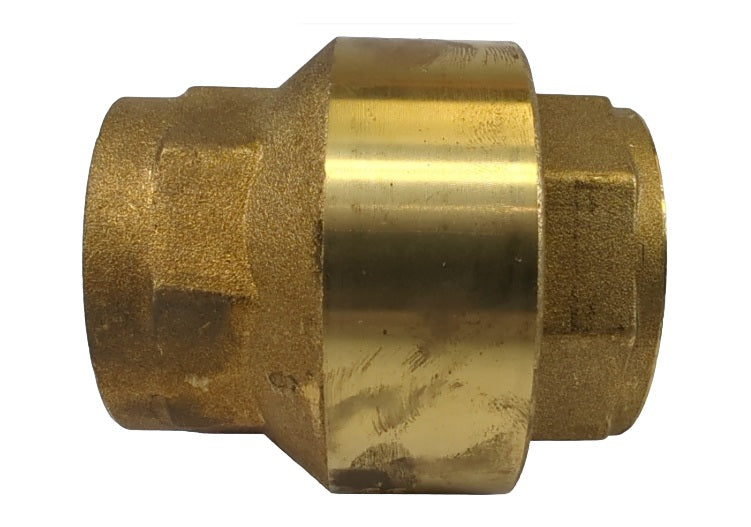

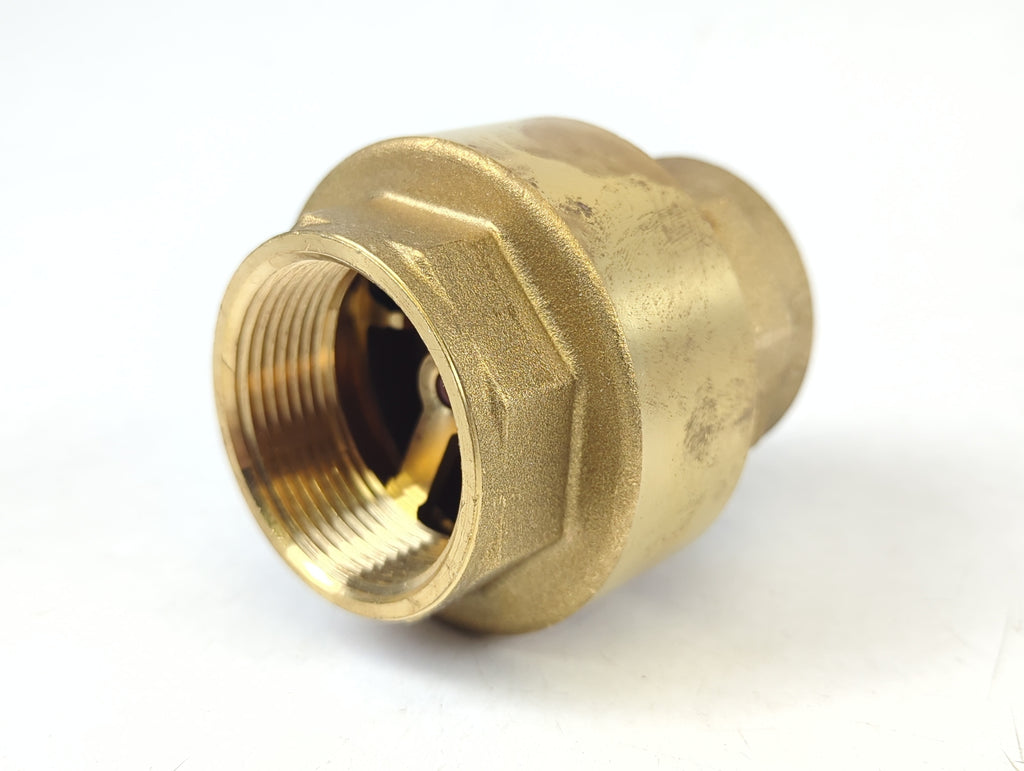

Bonomi 100003 EUROBLOCK 1-1/2" WOG400 Brass In-Line Check Valve with Viton Seal

Bonomi 100003 EUROBLOCK 1-1/2" WOG400 Brass In-Line Check Valve with Viton Seal
Pipe Size1-1/2"
Hex Size: 2.13” (2-1/8")
Overall Length: 3.31”
Height - Cap to Inlet Center: 0.68” (11/16”)
Connection Size - Side 1: 1-1/2"
Connection Size - Side 2: 1-1/2"
Material: Brass
Flow Rate: 35.72 gpm
Connection Type: FNPT x FNPT
Connection Gender - Side 1: Female
Connection Gender - Side 2: Female
Connection Type - Side 1: NPT
Connection Type - Side 2: NPT
Valve Body Style: Inline
Valve Ways: 2-Way
Seat/Seal Material: FKM
Flow Coefficient (Cv): 51.9
Cracking Pressure: 0.5 psi
Mounting Orientation: Horizontal/Vertical
Spring Material: 302 Stainless Steel
Max. Pressure (CWP): 400 psi
Max. Pressure (Steam): 125 psi
Media Temp. Range: -4 °F to 366 °F
Operating Temperature - Minimum: -4 °F
Operating Temperature - Maximum: 366 °F
Standards: ANSI B1.20.1
3-A Compliance: Not Rated
High Flow rate

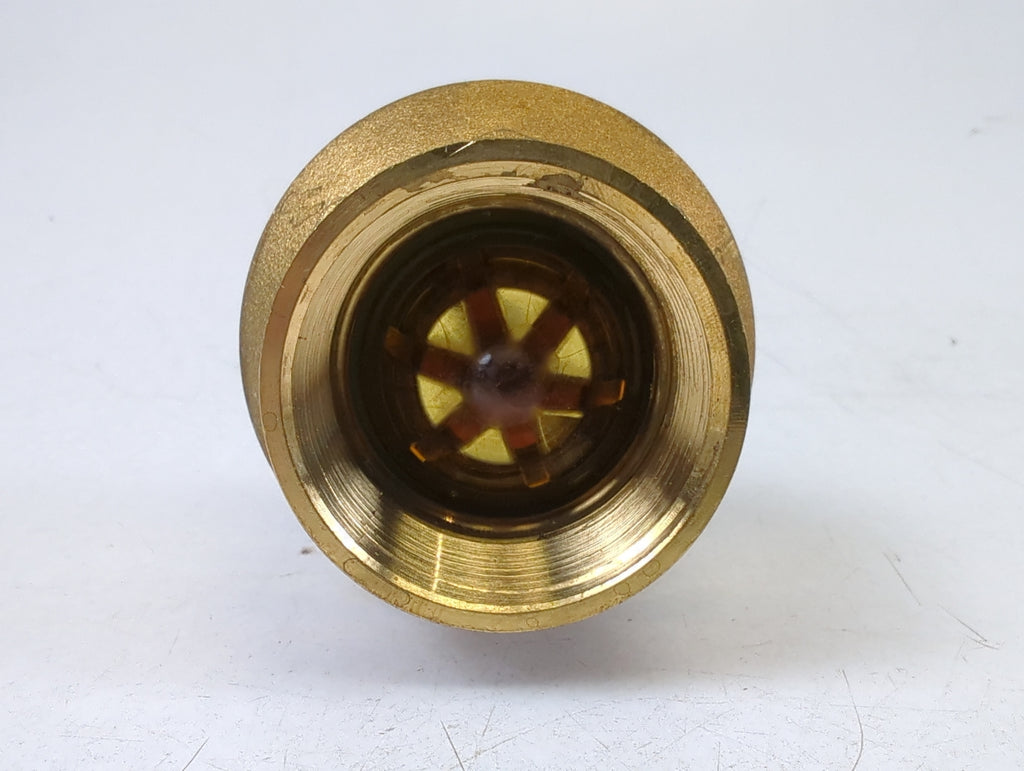

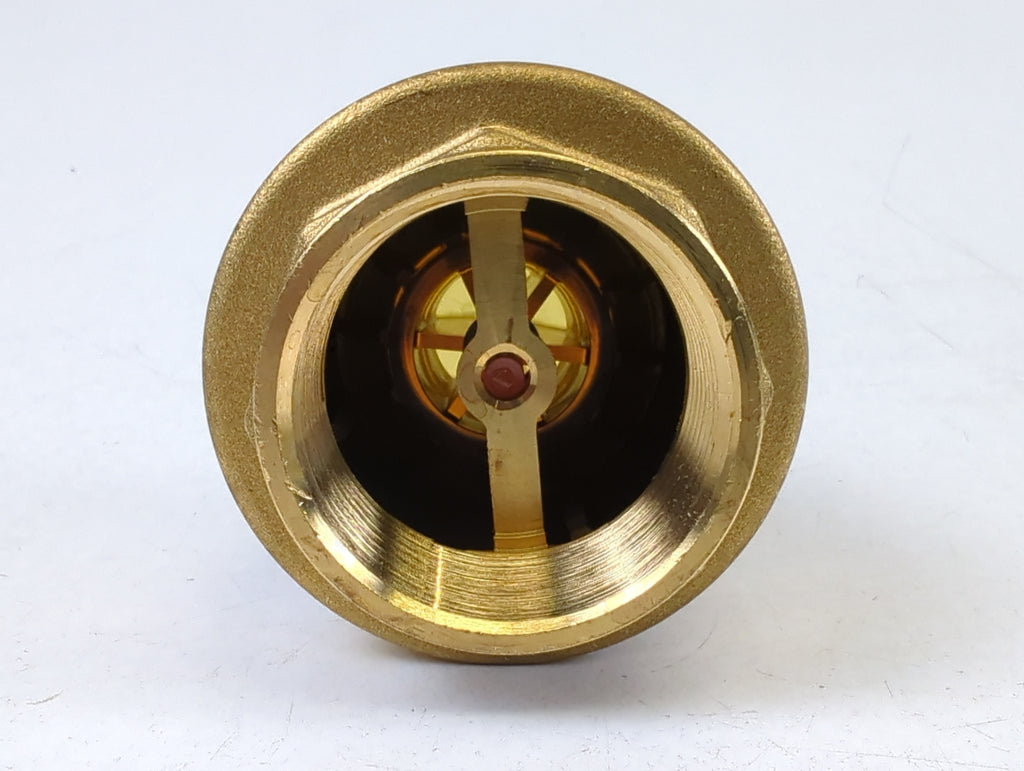

FNPT threaded, in-line spring loaded check valve.
Flow pattern to minimize head loss.
Perfect sealing both at high and low pressure.
High technology materials to ensure best resistance in any condition.
Not to be used for drinking water.
With FKM Viton seal for fuels and hydrocarbons.
Max working temperature 366°F/125 psi steam - size 3/8” to 4”.
Manufacturer: Bonomi, Valvola Di Ritegno
Model Number: EUROBLOCK
Part Number: 100003
Also Known As: 100003-1-1/2
