  • Sale
  • $39.95
  • 2 available
  • Armacost Lighting SLT60-12VL-1A 810120 ALSLT60W12VB White 12V Class 2 LED Power Supply
  • Features:
    • Pre-wired with AC cord and plug for use with existing outlets
    • When end caps are removed, power supply can also be direct wire installed through onboard terminal blocks
    • Easily mounts to surfaces using mounting tabs
    • Use minimum 18 AWG rated cable or better to tie in with line voltage
    • Automatic shut-off in case of lightning, overload, open or short circuit, over-temperature or other fault
    • Power supply will automatically restart after a fault has been corrected
    • For dry location use only (IP 20)
    • Designed for hardwired or plug-in applications
  • Specifications:
    • Output:
      • DC Voltage: 12V
      • Rated Current: 1A
      • Rated Power: 12W
      • Voltage Tolerance: +/-0.5V
      • Start-up Time (Typ.): <500ms
    • Input:
      • Voltage Range: 100 – 120VAC
      • Frequency Range: 50/60Hz
      • AC Current (Typ.): 0.3A
      • Efficiency (Typ.): 84%
      • Power Factor (Typ.): 0.50c @ 120VAC and full load
      • Inrush Current (Typ.): 29A / 120VAC
      • Leakage Current: <0.5mA / 120VAC
    • Guards:
      • Over Current: Hiccup mode, auto-recovery upon removal of fault condition
      • Short Circuit: Hiccup mode, auto-recovery upon removal of fault condition
    • Environmental:
      • Temperature Range: -4°F (-20°C) to 104°F (40°C)
      • Working Humidity: 20 – 90% Relative Humidity, non-condensing
      • Storage Temp. & RH: -40°F (-40°C) to 176°F (80°C), 10 – 95% Relative Humidity
      • Vibration: 10 – 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
    • Safety & EMC:
      • Safety Standards: UL Std. 8750, CAN/CSA Std. C22.2 No. 250.13; Class 2 Power Supply, ETL
      • Listed for dry and damp location use
      • Withstand Voltage: I/P – O/P: 1.2KVAC
      • Isolation Resistance: I/P – O/P: 100M Ohms / 500VDC / 25°C / 70% RH
      • EMC Emission: Compliance to FCC Part 15B (>=50% loading)
    • Other:
      • MTBF: 292K hrs min.
      • Cooling: Free Air Convection
      • Lifetime: 30,000 hours
      • Case: Fully isolated polycarbonate plastic case with built in terminal block for direct-wire connections
      • Dimensions: 4.06” L X 1.39” W X 0.67” H (103 X 35.4 X 17 mm)
  • Manufacturer: Armacost Lighting
  • Model Number: 810120
  • Part Number: SLT60-12VL-1A
  • Order Number: ALSLT60W12VB

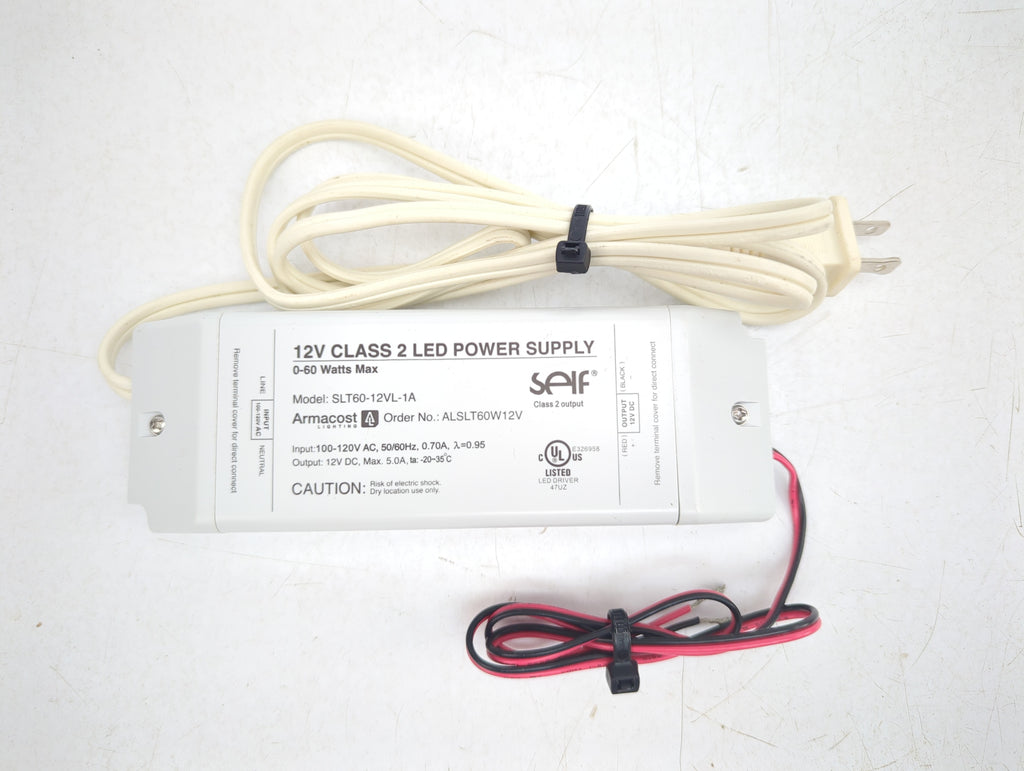

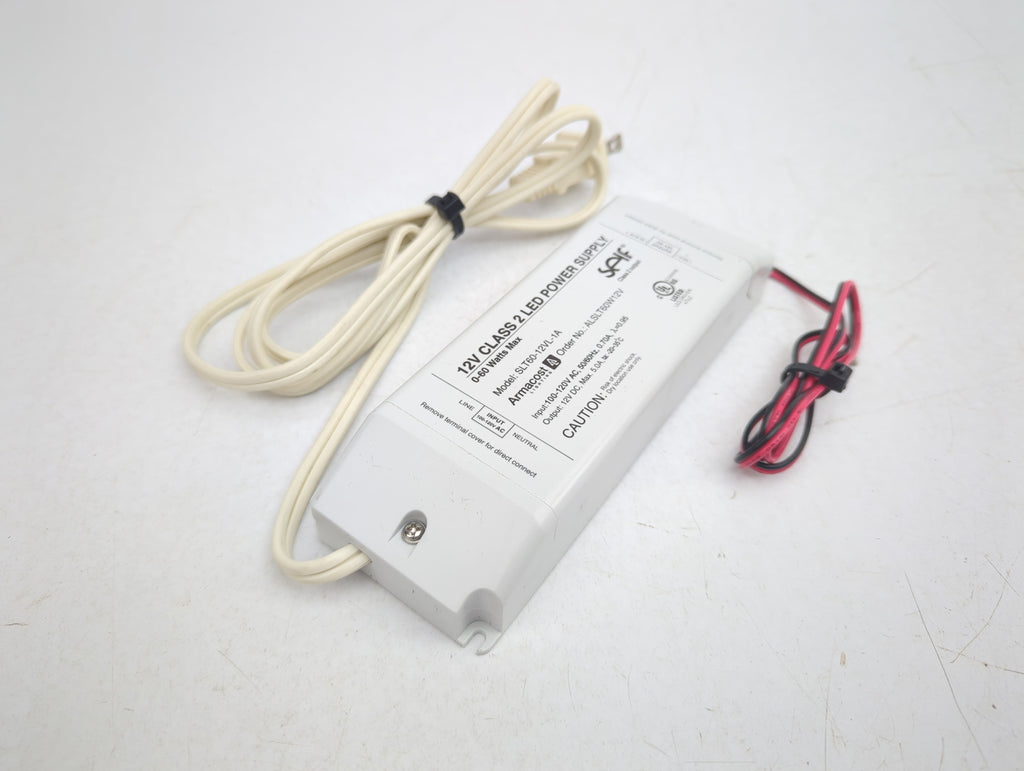

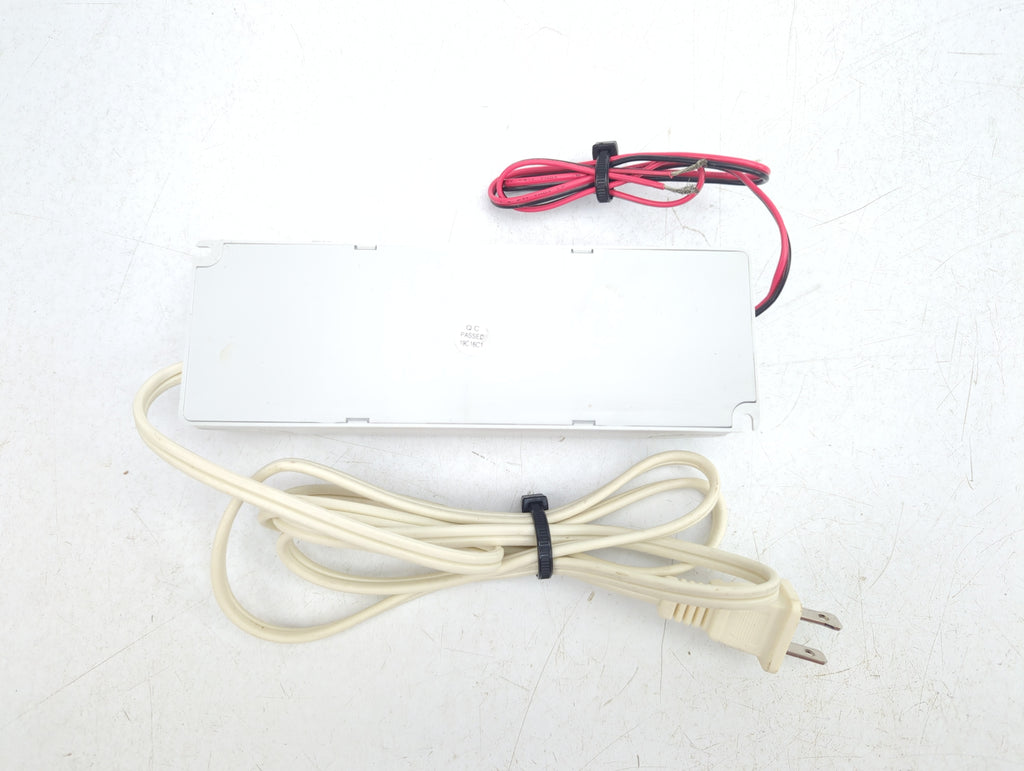

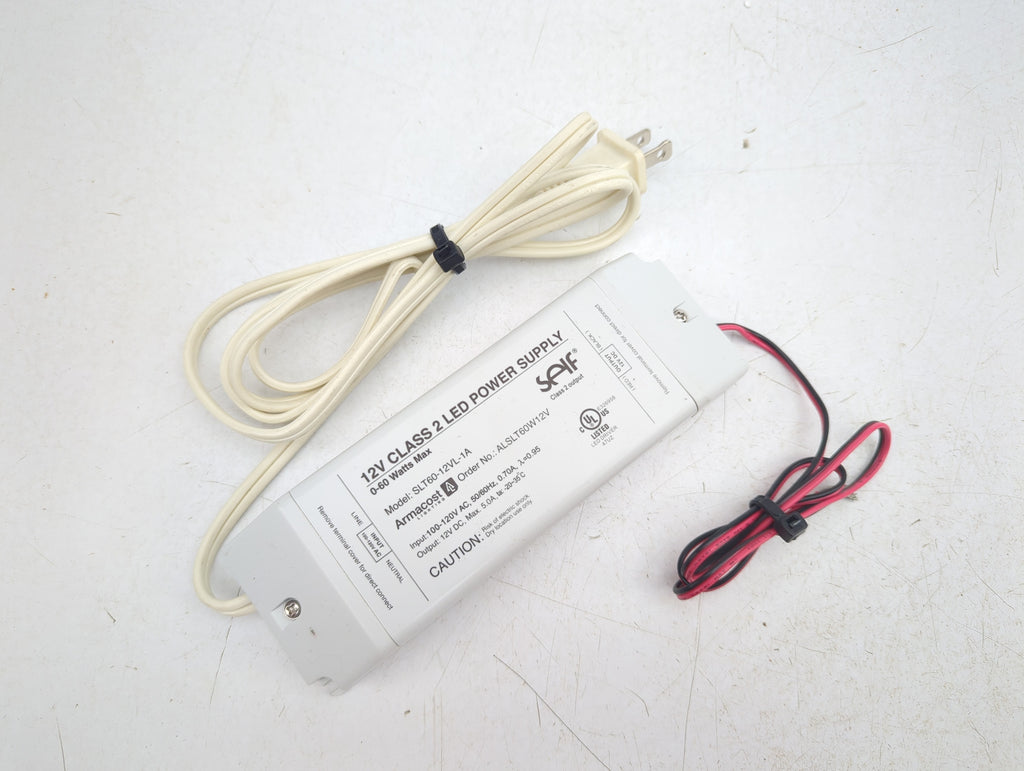

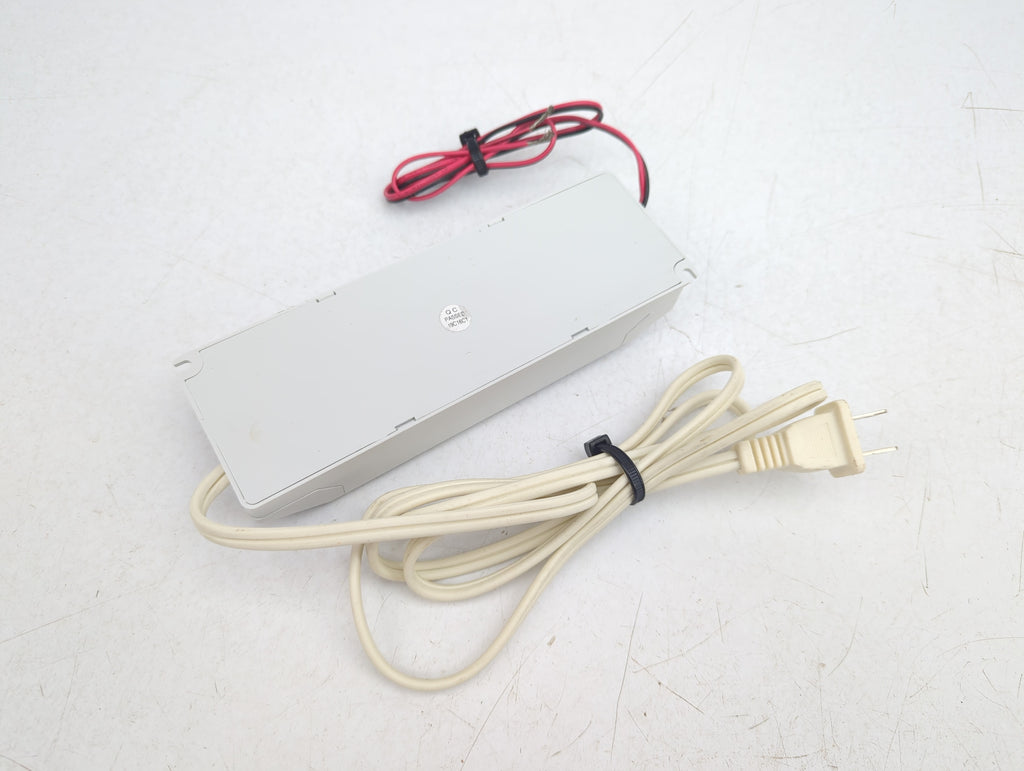

  • Condition: New! In Stock, Ready to Ship! This open box item is in excellent new condition. See Photos.
