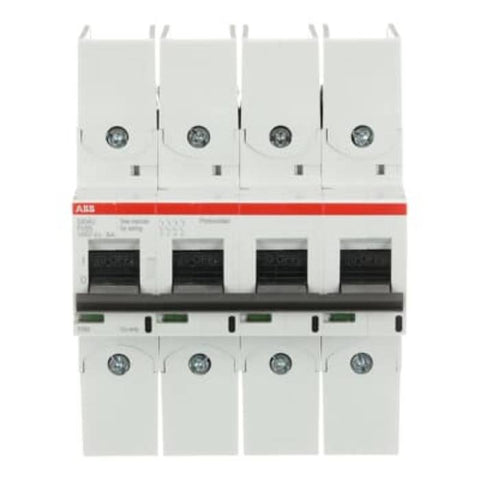

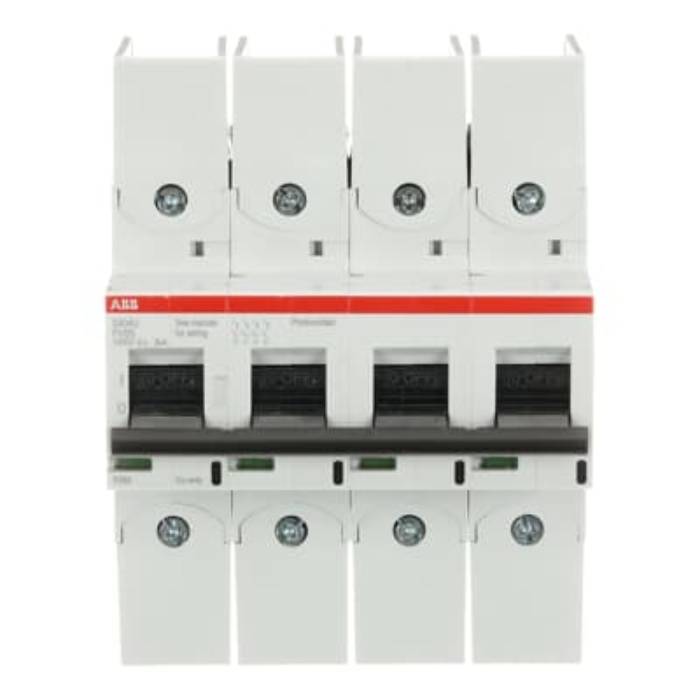

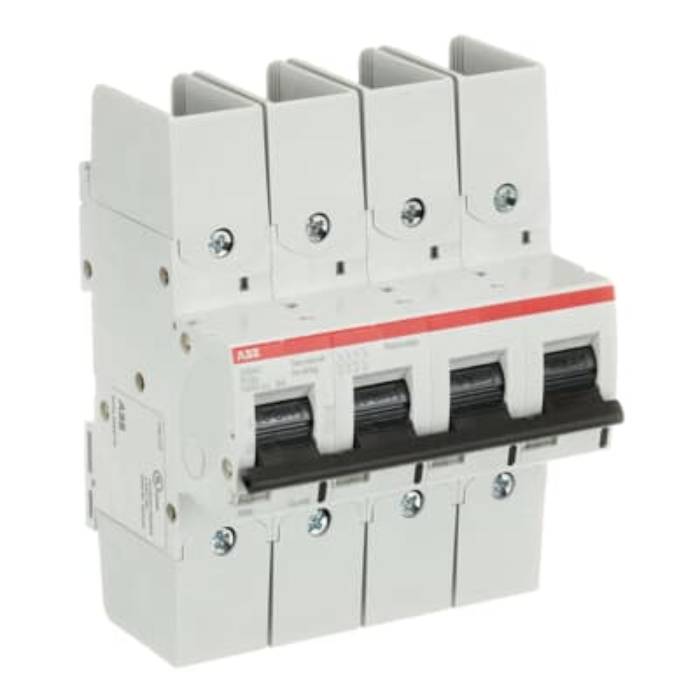

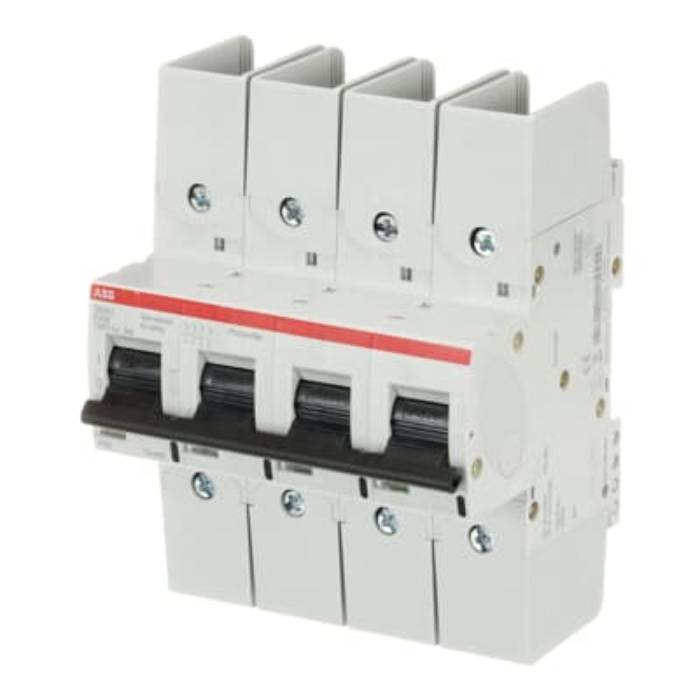

ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker
ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker
ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker
ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker
ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker
ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker

ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker

  • Sale
  • $1,999.95
  • Will be in stock after
  • ABB S804U-PVS5 High Performance 4-Pole Miniature Photovoltaic Circuit Breaker
  • ABB EcoSolutions:
    • ABB EcoSolutions: Yes
    • EcoSolutions Profile: Ecosolutions profile S800
    • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 -  86.29 %
    • ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
      End Of Life Disassembling Instructions: EoL instruction - S800 MCBs
    • Environmental Product Declaration - EPD: 9AKK108470A1695,9AKK108470A1696
  • Technical:
    • Contact Position Indication: ON / OFF / TRIP
    • Energy Limiting Class: 3
    • Number of Protected Poles: 4
    • Number of Poles: 4P
    • Tightening Torque: 3.5 N·m
    • Release Type: B
    • Actuator Marking: I  / O
    • Recommended Screw Driver: Pozidriv 2
    • Accessories Available: Yes
  • Remarks:
    • Connection from top and bottom
    • Connecting with CU only
    • IP40 in enclosure with cover
    • Cage terminal with captive screw
    • Connecting Capacity:
      • Flexible 0 … 50 mm²
      • Rigid 0 … 70 mm²
    • Terminal Type: Screw Terminals
  • Electrical:
    • Short-Circuit Current Rating (SCCR): (1000 V DC) 3 kA
    • Tripping Characteristic: B
    • Rated Operational Voltage: 1000 V DC
    • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 1500 V
    • Rated Impulse Withstand Voltage (Uimp): 8 kV
    • Input Voltage Type: DC
    • Rated Current (In): 5 A
  • Rated Short-Circuit Capacity:
    • (230 V) 2.5 kA
    • (400 V) 2.5 kA
    • Frequency (f): 0...0 Hz
    • Rated Frequency (f): 0 Hz
    • Power Loss: Total 7.2 W at Rated Operating Conditions per Pole 1.8 W
    • Overvoltage Category: IV
  • Design:
    • Housing Material: Insulation group I, RAL 7035
  • Technical UL/CSA:
    • Interrupting Rating acc. to UL489: (1000 V DC) 3 kA
  • Material Compliance:
    • RoHS Declaration: EU Declaration of Conformity - S800 S-UC, HV, PV-SP
    • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
    • RoHS Date: 20211214
    • REACH Declaration: Reach declaration S800, S800 auxiliaries, DS800
    • REACH Information: False - does not contain substances > 0.1 mass percentage
    • REACH Date: 20250313
    • Conflict Minerals Reporting Template (CMRT): Conflict Minerals Reporting Template
    • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
    • WEEE B2C / B2B: Business To Business
  • Environmental:
    • Ambient Air Temperature:
      • Operation: -25 ... +60 °C
      • Storage: -40 ... +70 °C
    • Degree of Protection: IP20
    • Pollution Degree: 3
    • Environmental Information: 2CCY413207D0203
  • Dimensions:
    • Width in Number of Modular Spacings: 6
    • Product Net Width: 108 mm
    • Product Net Height: 142 mm
    • Product Net Depth / Length: 82.5 mm
    • Product Net Weight: 980 g
    • Built-In Depth (t2): 82.5 mm
  • Engineering:
    • EPLAN Data: EPLAN EDZ S800U-PVS
  • Certificates and Declarations
    • Declaration of Conformity - CE:
    • EU Declaration of conformity - S800PV-S, S800U, S800HV
    • UL Certificate: UL_489_S800U
  • Manufacturer: ABB
  • Model Number: Circuit Breaker
  • Part Number: S804U-PVS5
