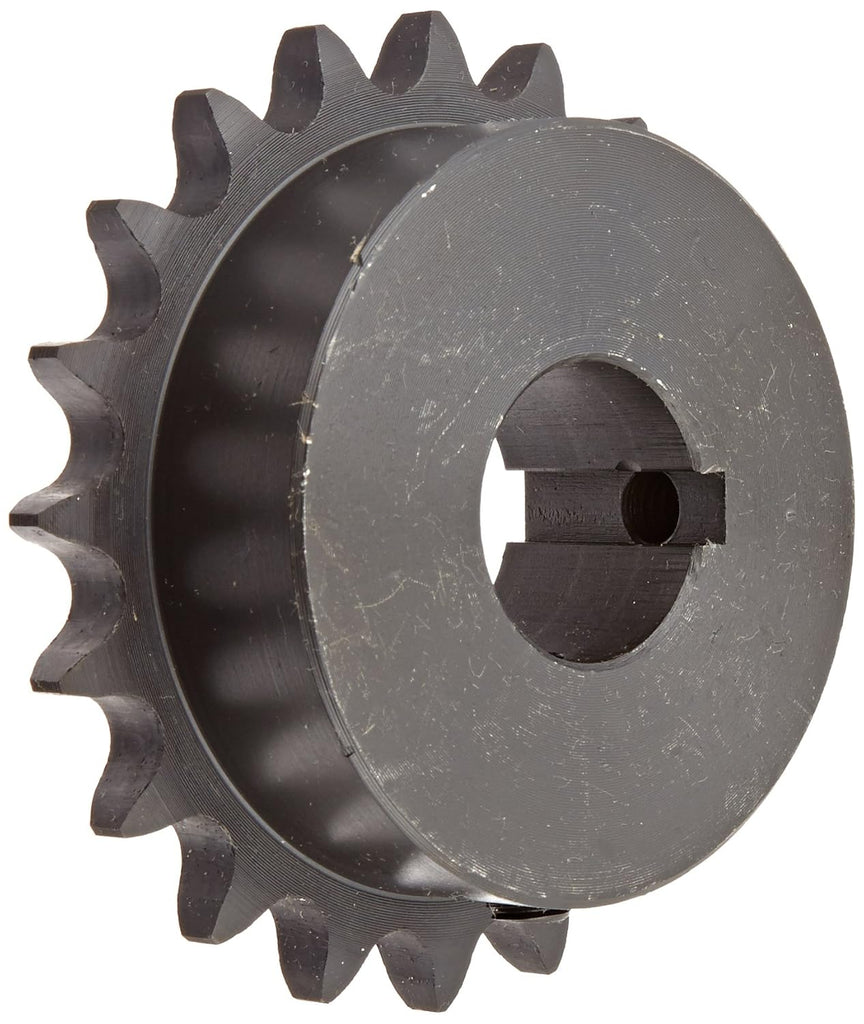

Tsubaki UST 40B20F-1 Steel 40 / 1/2" Pitch 20 Tooth 1" Bore Roller Chain Sprocket
Tsubaki UST 40B20F-1 Steel 40 / 1/2" Pitch 20 Tooth 1" Bore Roller Chain Sprocket
Tsubaki UST 40B20F-1 Steel 40 / 1/2" Pitch 20 Tooth 1" Bore Roller Chain Sprocket
Tsubaki UST 40B20F-1 Steel 40 / 1/2" Pitch 20 Tooth 1" Bore Roller Chain Sprocket

Tsubaki UST 40B20F-1 Steel 40 / 1/2" Pitch 20 Tooth 1" Bore Roller Chain Sprocket

  • Sale
  • $49.95
  • 2 available
  • Tsubaki UST 40B20F-1 Steel 40 / 1/2" Pitch 20 Tooth 1" Bore Roller Chain Sprocket
  • Built from top-grade, heat-treated carbon steel to offer long wear life, resist abrasion, and withstand heavy shock loads
  • Precision manufacturing at ISO-certified facilities ensures that every U.S. Tsubaki sprocket stands up to critical design specifications and meets the highest quality standards

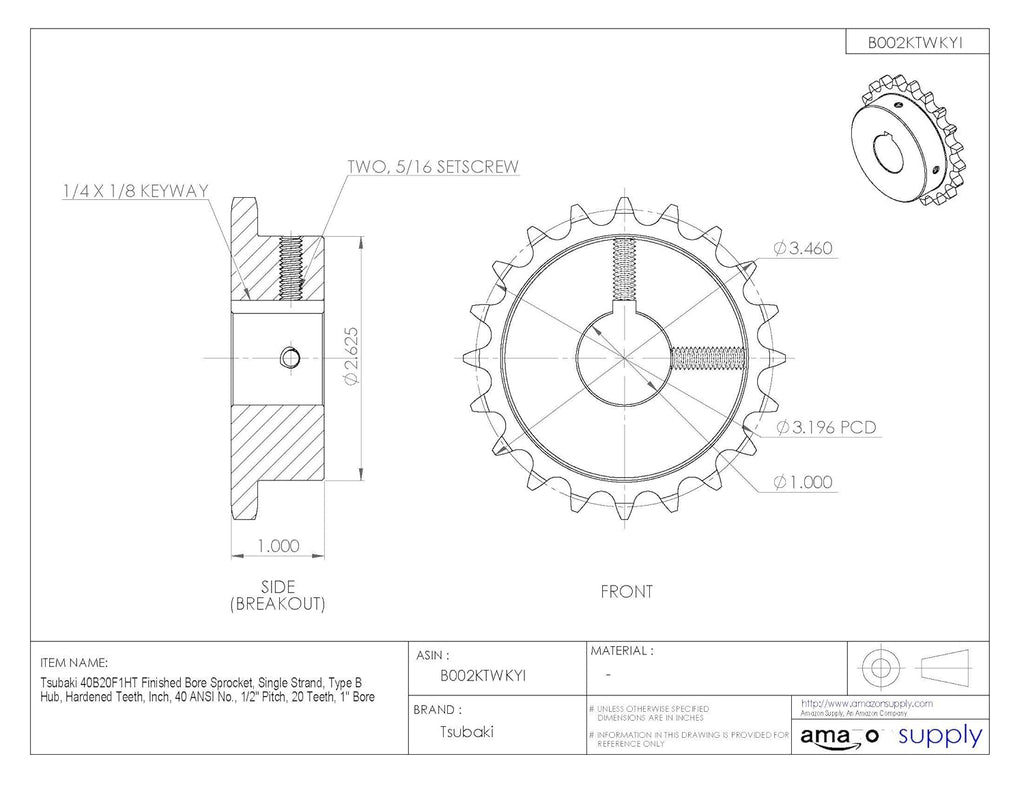

  • Chain Number & Pitch: 40 / 1/2"
  • Number of Teeth: 20
  • Bore Diameter: 1”
  • Number of Strand Across: 1
  • Material: Steel
  • Hardened Teeth: Non-Hardened Teeth
  • Number of Hubs: 1
  • Length Through Bore: 1”
  • Outside Diameter: 3.457”
  • Pitch Type: Single
  • Pitch Diameter: 3.196”
  • Tooth Width: 0.284”
  • Keyway Size: 1/4" x 1/8"
  • Bore Type: Finished with Keyway
  • Manufacturer: Tsubaki UST
  • Model Number: Roller Chain Sprocket
  • Part Number: 40B20F-1
