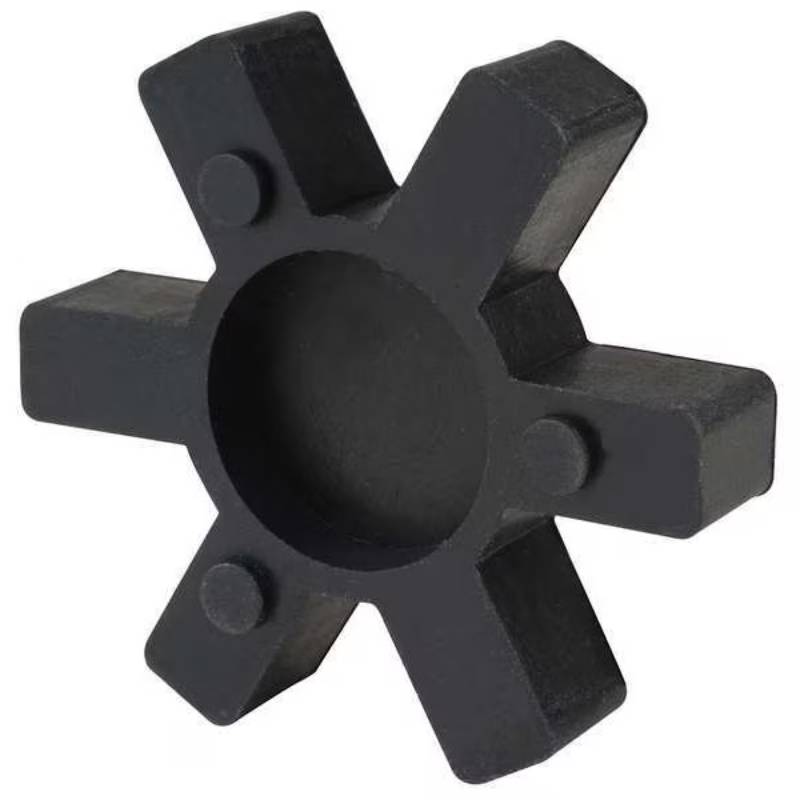

Dayton 29HZ08 Buna-N L090/L095 7000 RPM Spider Jaw Coupling Insert

Dayton 29HZ08 Buna-N L090/L095 7000 RPM Spider Jaw Coupling Insert

  • Sale
  • $14.95
  • 1 available
  • Dayton 29HZ08 Buna-N L090/L095 7000 RPM Spider Jaw Coupling Insert
  • Size: L090/L095
  • Length: 0.441”
  • Width: 2.087”
  • Height: 2.087”
  • Outside Diameter: 2-3/32”
  • Shaft Dia. Range: 1/4" to 1-7/16” to 1-1/8"
  • Spider Width: 0.44”
  • Color: Black
  • Material: Buna N
  • Rated Torque: 315 in-lb
  • Max. RPM: 7,000 RPM
  • HP Rating @ 100 RPM: 0.23/0.30
  • Temperature Range: 104 to 212 °F
  • Max. Angular Misalignment: 1°
  • HP Rating @ 1800 RPM: 4.11/5.54
  • Torque: 189/315 in/lbs
  • Coupling Weight: 0.036 lbs
  • Max. Parallel Misalignment: 0.015”
  • Max. Torque: 145/315 in/lbs
  • Horsepower @ 100 RPM: 0.23 hp
  • HP Rating @ 1200 RPM: 2.74/3.69
  • HP Rating @ 3600 RPM: 8.23/11.08
  • Maximum Speed: 9,000 RPM
  • Number of Teeth: 6
  • Zero Backlash: No
  • Minimum Operating Temperature: -40 °F
  • Fail Safe: Yes
  • Axial Motion: 0.015 mm
  • Parallel Misalignment: 0.015”
  • Horsepower @ RPM: 2.7 hp @ 1200 RPM, 4.1 hp @ 1800 RPM, 8.2 hp @ 3600 RPM
  • Maximum Torque: 144 in-lb
  • Angular Misalignment: 1°
  • Durometer Hardness: 80A
  • Resistance Properties: Oil Resistant
  • Spider Type: Solid Center Spider
  • Manufacturer: Dayton
  • Model Number: Jaw Coupling Insert
  • Part Number: 29HZ08
