Monoprice DVI-EH Network DVI Extender System DVI-LH + DVI-RH
-
Monoprice DVI-EH Network DVI Extender System DVI-LH + DVI-RH
- The extension of DVI-D video signal device up to 30/50 meter away by using DVI extender and two CAT.5 cables.
- DVI Extender is ideal for:
- Test bench facilities
- Data Center
- Help desks
- Features:
- PC resolution to 1600x1200 60Hz / 30 meter
- PC resolution to 1280x1024 60Hz / 50 meter
- HDTV resolution up to 1080i / 50 meter
- Compliant with the specification of DVI 1.0
- Supports DVI-D
- Supports DDC & HDCP
- Uses CAT.5 cable to install easily
- Specifications:

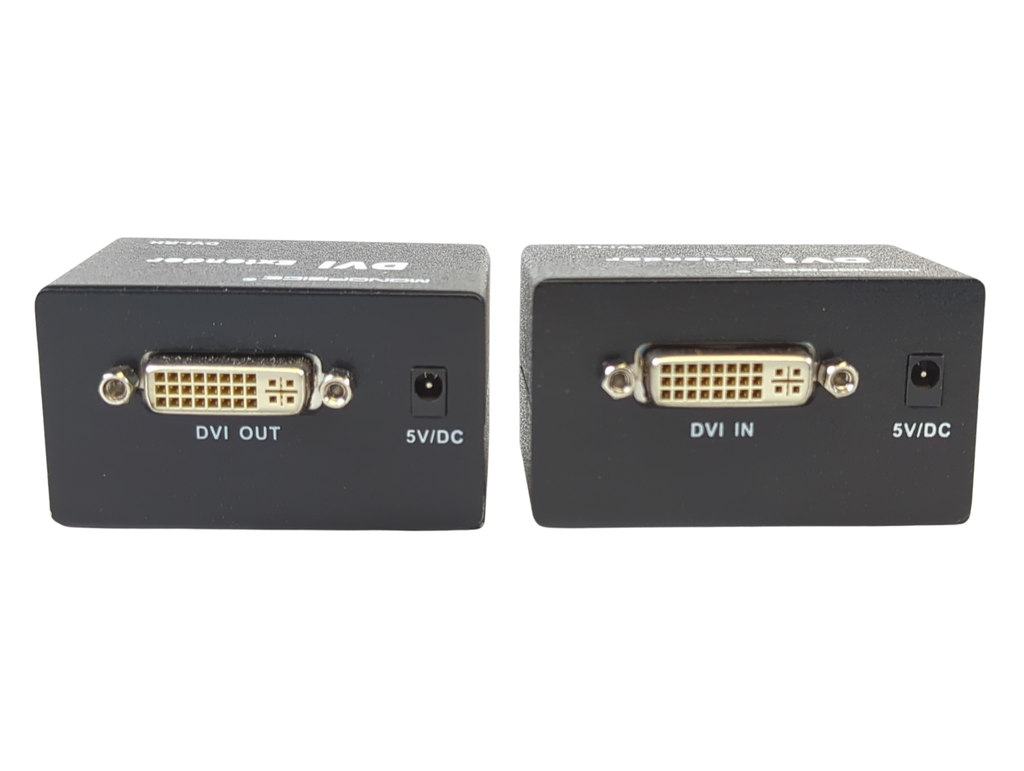

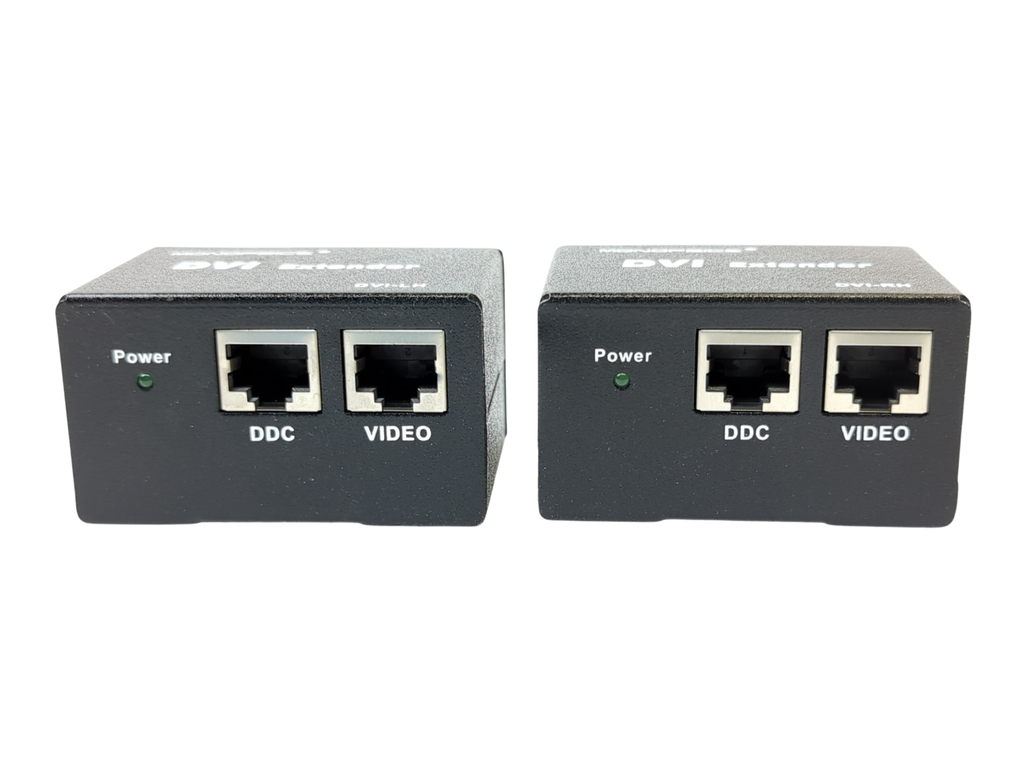

- Input Connector: 1 DVI Female (DVI-LH), 2 RJ-45 Female (DVI-RH)
- Output Connector: 2 RJ-45 Female (DVI-LH), 1 DVI Female (DVI-RH)
- Max. Resolution: 1600x1200 60Hz / 1280x1024 60Hz, 1080i
- Cable Distance: 30/50 m (Max.)
- Power Adapter (Min.): DC 5V 1A
- Housing: Metal
- Weight: 145g (DVI-LH), 142g (DVI-RH)
- Dimensions: 2.64” X 2.05” X 1.50” (67 X 52 X 38 mm)
- Includes:
- DVI-LH DVI Extender Local Unit
- DVI-RH DVI Entender Remote Unit
- 1 User Manual

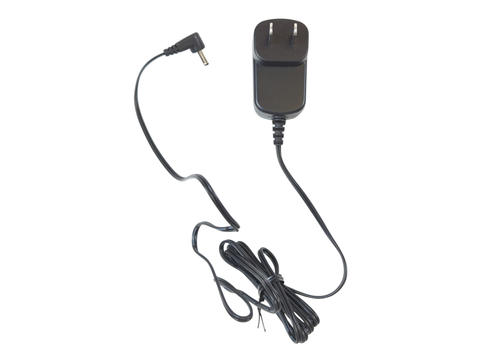

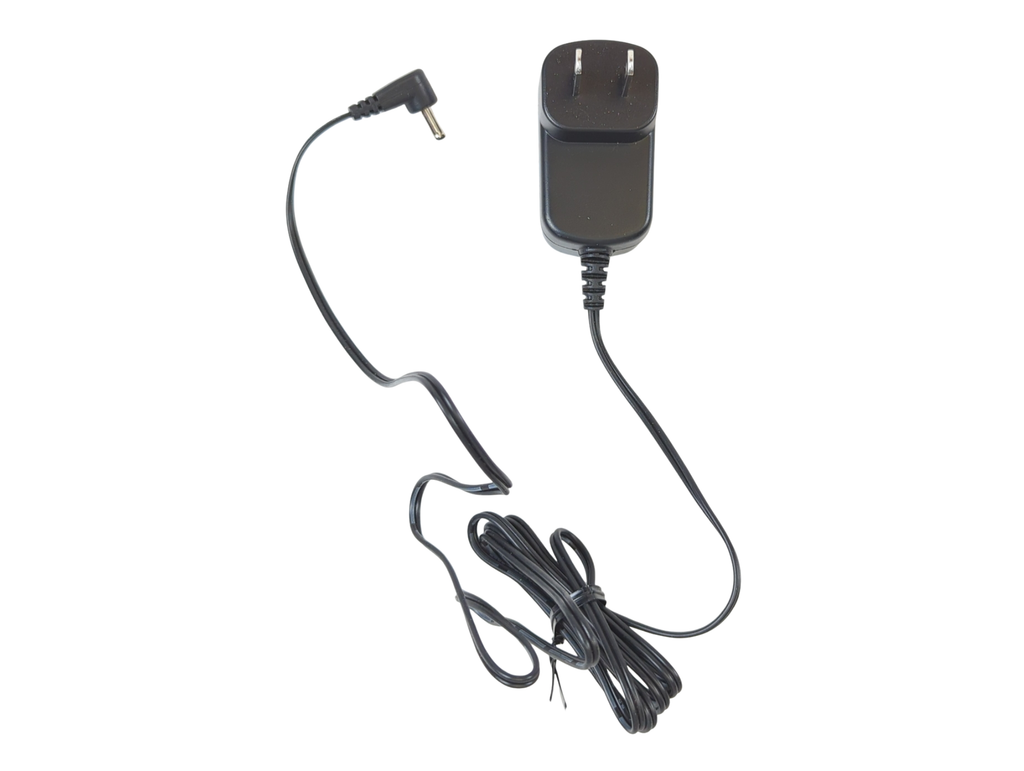

- 2 Power Adapters
- Manufacturer: Monoprice
- Model Number: Network DVI Extender System
- Part Number: DVI-LH + DVI-RH = DVI-EH
