Aten VS-102 VGA 2-Port 250MHz Video Splitter Wall Plate with Power Supply
Sale
Regular price
$18.95
1 available
Aten VS-102 VGA 2-Port 250MHz Video Splitter Wall Plate with Power Supply
The VS-102 video splitter provides video input signals to 2 video outputs each at 250 MHz after duplication. Users can boost video signals from the video gain knob within a transfer range up to 65m.
Features:
One video input to 2 video outputs.
Cascadable to 3 levels-provides up to 8 video signals.
Supports up to 250 MHz bandwidth.
Long distance transmission - up to 65 m.
High video resolution - up to 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall
Specifications:
Video Input:
Interfaces: 1 X HDB-15 Male (Blue)
Impedance: 75 Ω
Max. Distance: 1.8m
Video Output:
Interfaces: 2 X HDB-15 Female (Blue)
Impedance: 75 Ω
Video:
Max. Bandwidth: 250 MHz
Max. Resolution: Up to 1920 X 1440
Max. Distance: Up to 65 m
Connectors:
Power: 1 X DC Jack
Power Consumption:
DC9V:1.22W:6BTU/h
Environmental:
Operating Temperature: 0-50°C
Storage Temperature: -20 - 60°C
Humidity: 0 - 80% RH, Non-Condensing
Physical Properties:
Housing: Metal
Weight: 0.19 kg (0.42 lb)
Dimensions (L X W X H): 103.6 X 79 X 28.2 mm (4.08” X 3.11” X 1.11”)
Manufacturer: Aten
Model Number: Video Splitter Wall Plate
Part Number: VS-102

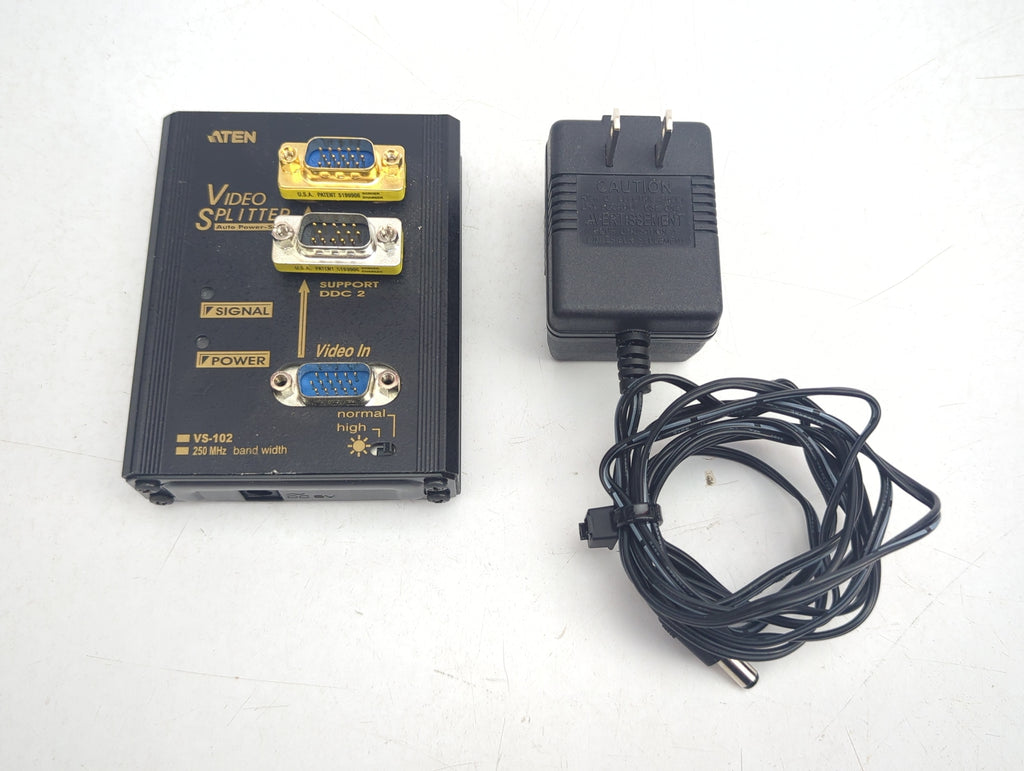

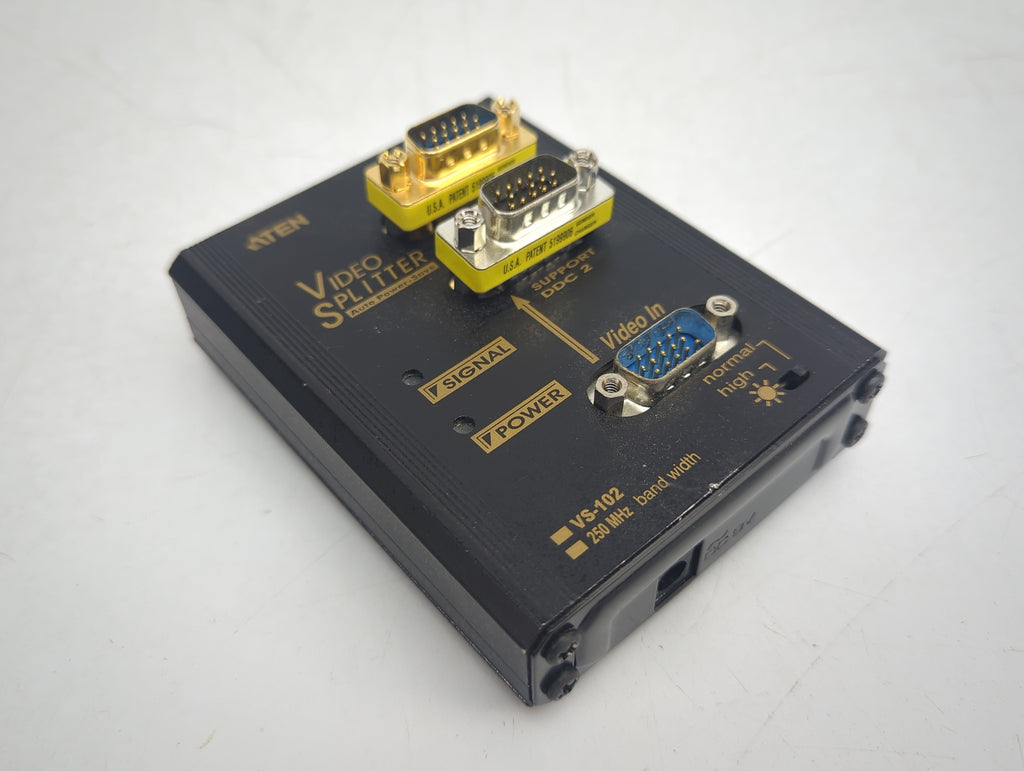

Condition: In Stock, Ready to Ship! This unit is in very good physical condition. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
