Cellular Bands LTE bands B1 to B86 (except B31, B72, B73, B87, B88), 5G bands n1 to n99
VSWR: < 2.5 over 85% of the band
Feed Power Handling: 10W
Input Impedance: 50 Ω
Polarisation: Linear
Wi-Fi:
Antenna Elements: 2 elements
Peak Gain:
4.8dBi: 2400-2500MHz
7.4dBi: 5000-6000MHz
VSWR: < 2.5
Feed Power Handling: 10W
Input Impedance: 50 Ω
Polarisation: Linear
GPS:
Frequency Range: 1561-1602 MHz
Peak Gain:
0.5dBi@1575MHz
1.6dBi@1602MHz
VSWR: < 2 dB
Output Return Loss: 10dB max
Gain: LNA: 28 ±3dB
Noise Figure: 1.5dB max at 3.3V
Operating Voltage: 3.3V
Power Consumption: 8.5 ±2.5mA at 3.3V
Cable:
Type: CFD-200
Loss:
0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz
Diameter: 0.2" / 5.0mm
Jacket: Half Matt PVC, UV resistant

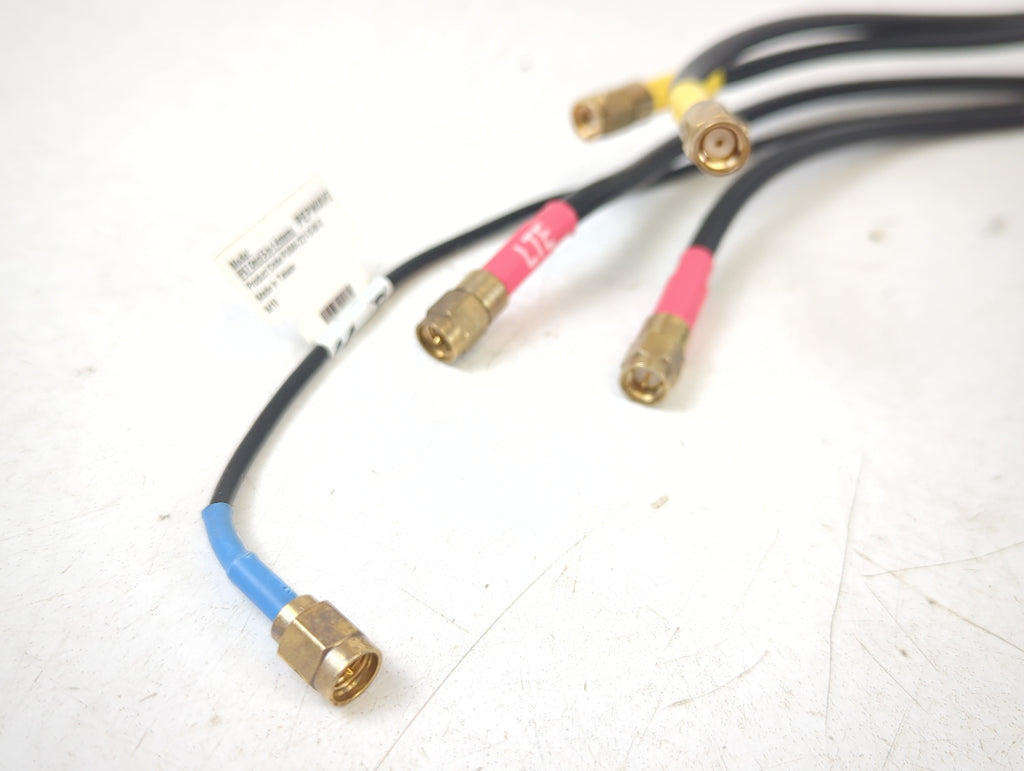

Termination: SMA Male and RP-SMA Male
Type: RG-174
Loss:
3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz
Diameter: 0.1" / 2.7mm
Jacket: Half Matt PVC, UV Resistant
Termination: SMA male
Mounting:
Supported Types: Panel, wall, pole
Mounting Hole: 1-11/16" / 43mm
Max Panel Thickness: 19/32" / 15mm
Mechanical:
Product Dimensions:
Height: 1.42" / 36mm (spigot not included)
Diameter: 5.12" / 130mm
Packaged Dimensions: 8.90" X 8.46" X 4.29" / 226 X 215 X 109mm
Radome Material: UV stable PC+ABS
Environmental, Compliance:
Cable Flammability: UL 758 (VW-1)
Compliance: RoHS, REACH & WHEE
Enclosure Flammability: UL 94 HB
IP Rating: IP68
Operating Temperature: -40° - 176°F / -40° - 80°C
Storage Temperature: -40° - 176°F / -40° - 80°C
Salt Spray: MIL-STD 810F/ASTM 8117
UV Resistance Rating: UL 746C (F1, long-term UV exposure)
Wind Survival: 220 km/h
Manufacturer: Peplink
Model Number: Pepwave
Part Number: ANT-MB-22G-S-B-6

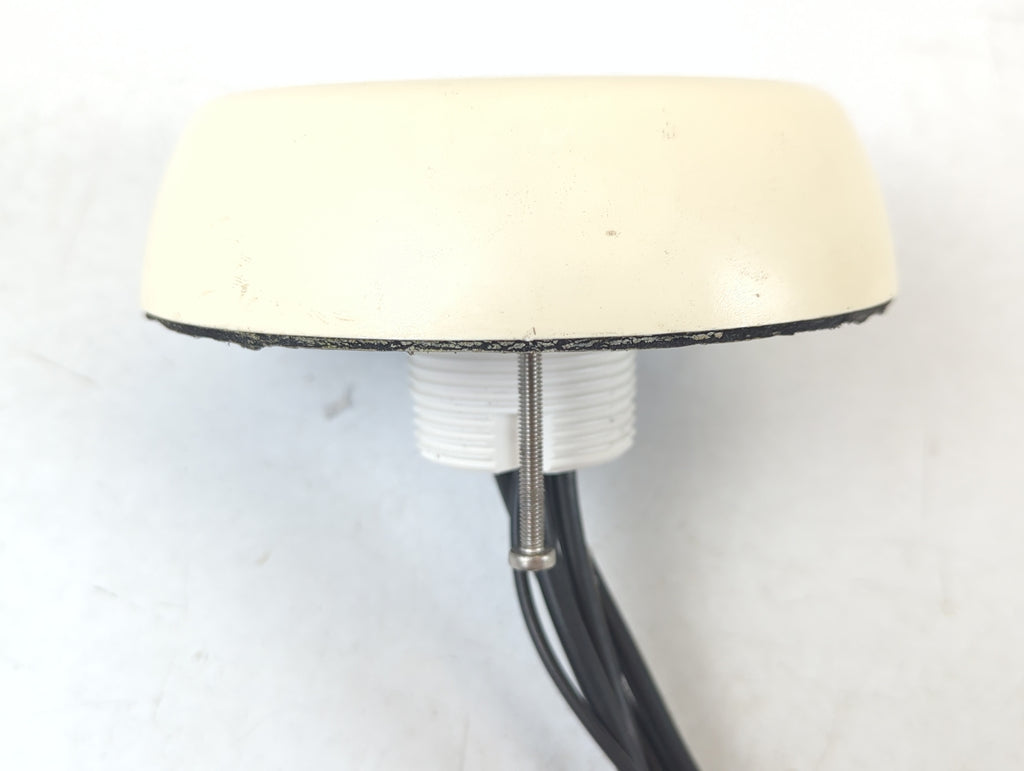

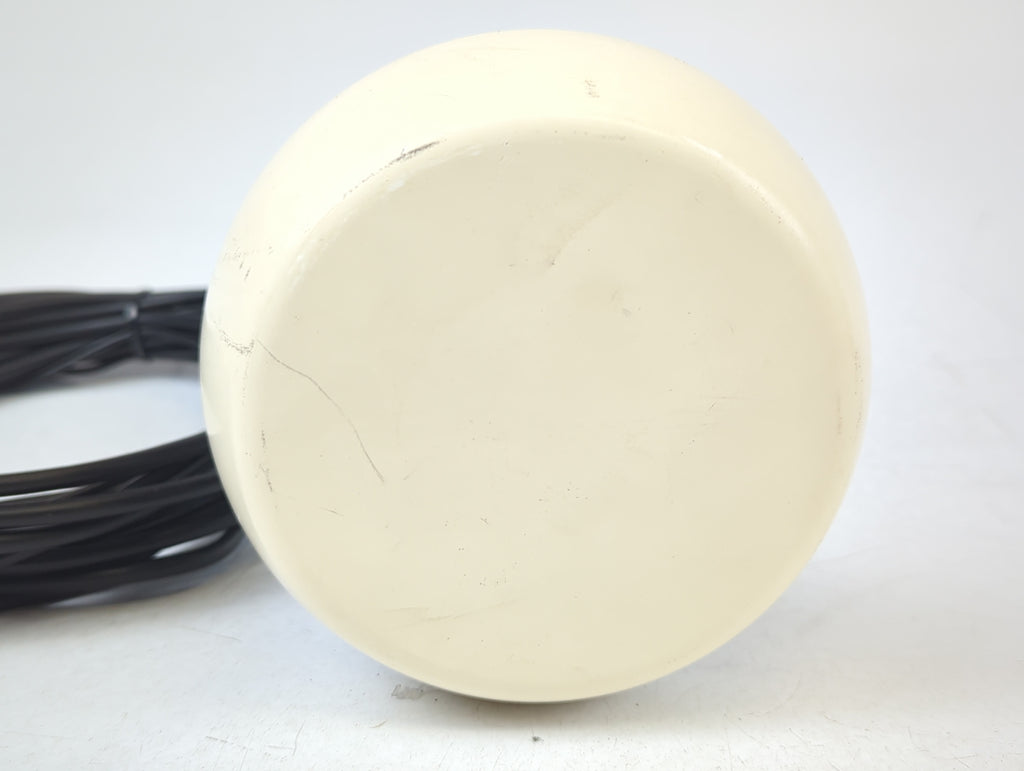

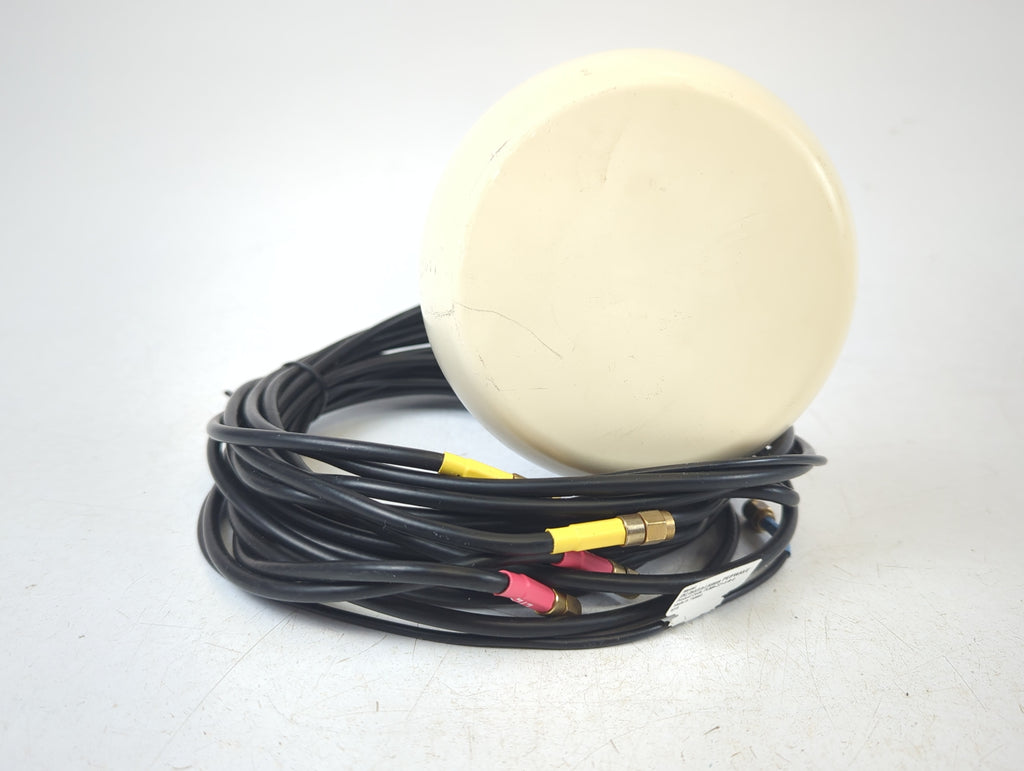

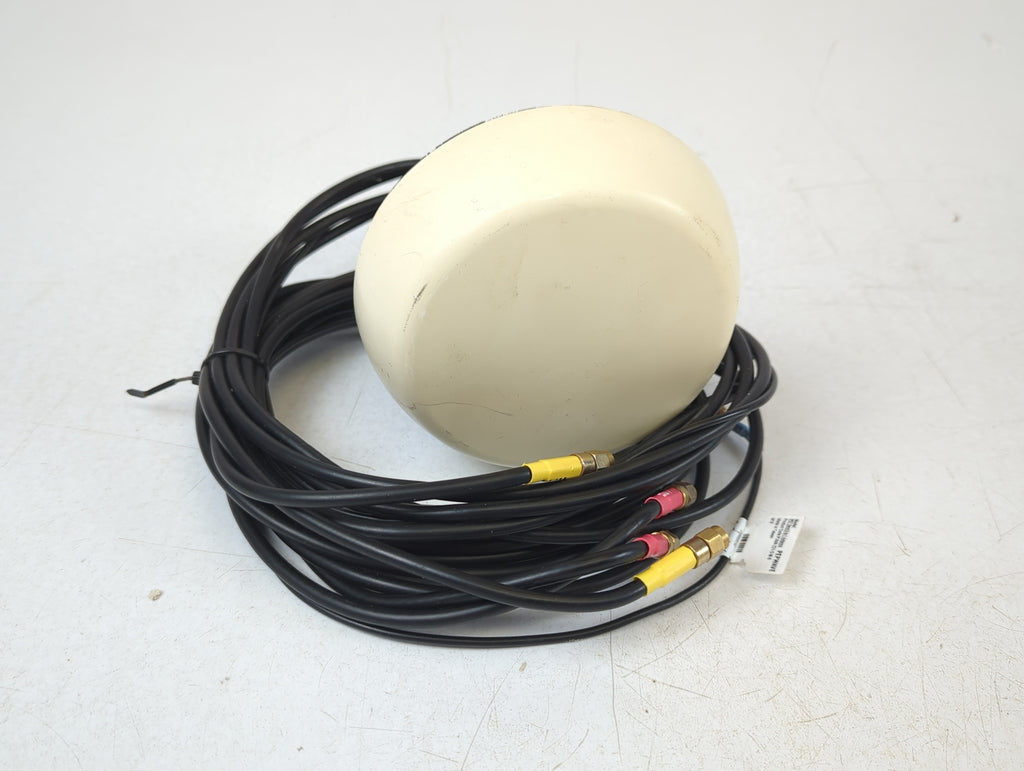

Condition: In Stock, Ready to Ship! This unit is in very good physical condition. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
