  • Sale
  • $79.95
  • 1 available
  • Advantech ADAM-6510 Industrial 4-Port 10 Mbps Unmanaged Ethernet Switch Hub
  • The ADAM-6510 is an industrial-grade Ethernet hub/switch. It allows users to expand their industrial network fast and cost-effectively. The ADAM-6510 is a 4-port 10 Mbps Ethernet hub, which has four twisted pair ports to connect up to four Ethernet devices. Moreover, the product provides superior industrial grade design to assure reliability and stability. Thus, the ADAM-6510 is especially suited for industrial environments with Ethernet networking needs: semi-conductor factories, inventory control environments, assembly lines, production and more.
  • Features:
    • Supports +10 ~ 30 VDC voltage power input
    • Provides surge protection 3000VDC for power line
    • Provides flexible mounting: DIN rail, panel, piggyback
    • Supports operating temperatures from -10 ~ 70° C
  • Specifications:
    • Interface Network: 10 Base-T Ethernet
    • Port: 4 x 10 Mbps, 1 x 10 Mbps uplink
    • Connector: RJ-45
    • Compatibility: IEEE 802.3, IEEE 802.3u
    • Surge Protection: 3000 VDC (Power)
    • LED: Power, 10/100 Mbps
    • Power Requirements: Unregulated 10 ~ 30 VDC
    • Power Consumption: 2 Watt
    • Case: ABS/PC with captive mounting hardware
    • Mounting: DIN-rail, panel mounting, piggyback stack
    • Operating Temperature: -10 ~ 70° C (14 ~ 158° F)
    • Storage Temperature: -20 ~ 80° C (-4 ~ 176° F)
    • Operating Humidity: 20 ~ 95 % (non-condensing)
    • Storage Humidity: 0 ~ 95 % (non-condensing)
  • Manufacturer: Advantech
  • Model Number: 4-Port Industrial 10 Mbps Ethernet Hub
  • Part Number:  ADAM-6510

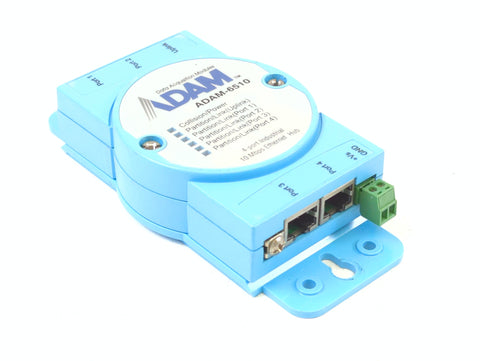

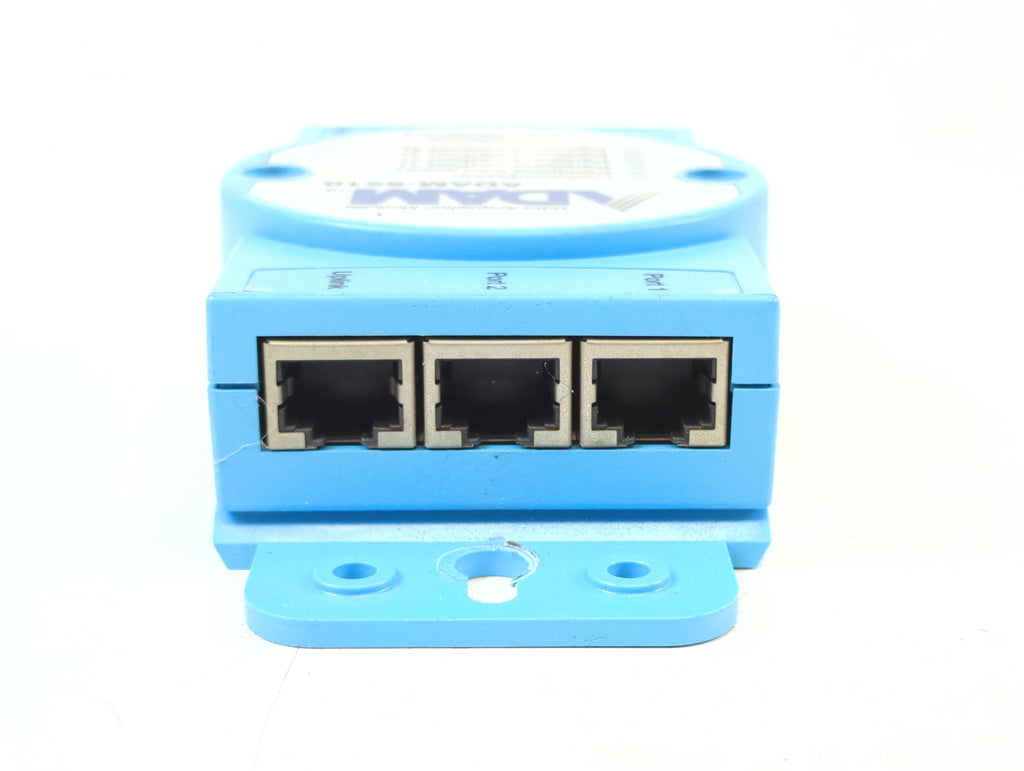

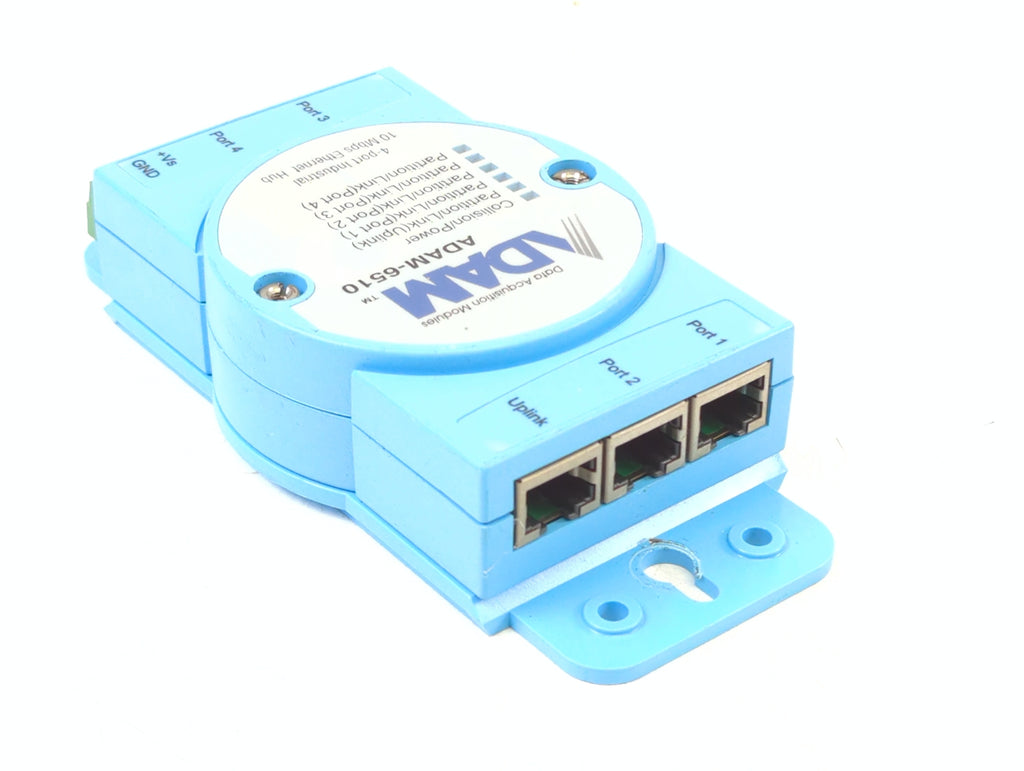

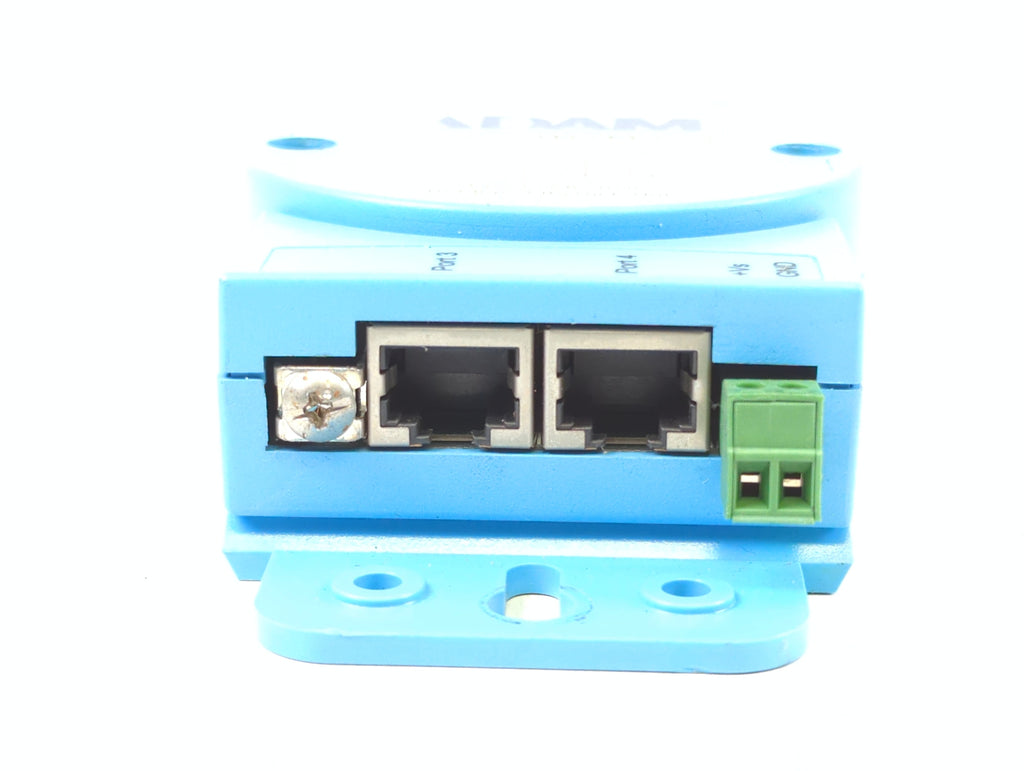

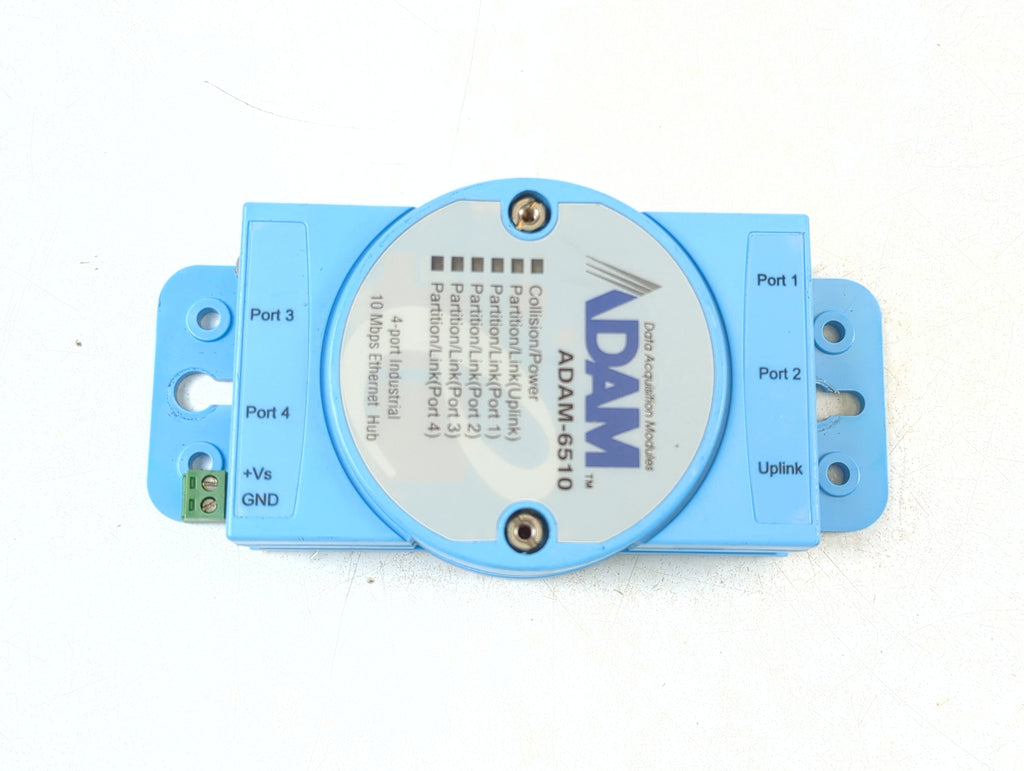

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
